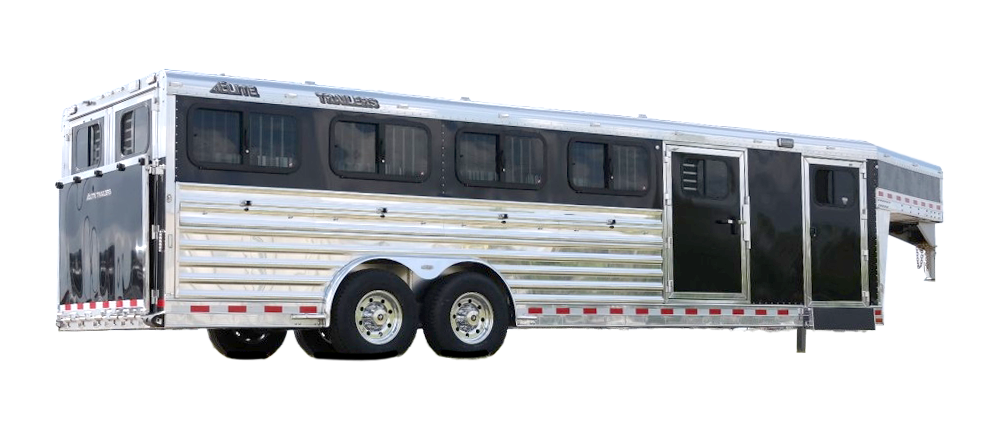

Gooseneck Low Pro Aluminum Trailer

While maintaining the heavy duty, engineered structure of our Stock Trailers, the Low Pro Livestock trailer is designed for smaller animals like pigs, lambs and sheep. Available in models with and without a front dress and options from pens & alley gates to slide rail center gates, the option list for this trailer allows you to customize the trailer based on your needs.

Standard Trailer Features

Exterior
  • 2-5/16" Adjustable Coupler with Safety Chains and Breakaway Kit
  • Single Speed Jack
  • 8' Long with 2' Tapered Nose
  • .040 One Piece Aluminum Roof Sheet
  • Full Length Side Slats with Three Air Spaces and Natural Smooth Sheets
  • Rubber Torsion Axles with Electric Breaks
  • Radial Tires with Steel Wheels
  • Double Rear Doors with Hehr Windows, Locking Seal Plates and Removable Center Post
  • 4" Rubber Docking Bumper
  • Escape Gate (Streetside or Curbside)
  • 7 Way Plug and Wiring
  • Recessed Exterior Light Switches
  • 3/4" Button Fender Lights
  • LED High and Low Turn Signals at Rear
  • LED Dome and Clearance Lights
Stock Area
  • Marine Grade Aluminum Treadplate Floor
Dress
  • MODELS WITH DRESS
  • Dress Door with Hehr Windows
  • LED Dome Light in Dress
  • Marine Grade Carpet on Drop and Bed
  • Clothes Rod
  • 5 Bridle Hooks
  • Rubber Mats on Floor
Base Dimensions
  •  WidthLengthHeight
  • Low Pro6'8", 7' 7' 6", 8'16' to 40' (Floor)6'+
  • Low Pro with Dress6'8", 7', 7' 6", 8'16' to 40' (Floor)6'+

Popular Options

Air Conditioner
  • 13,500 BTU A/C Unit with Heat Strip
  • 13, 500 BTU Low Pro A/C Unit with Heat Strip and Thermostat
  • Frame for A/C
  • Frame and Pre Wire for Future A/C Unit
Awnings
  • Domestic 2 Step Awning
Axles
  • EZ Lube Axles
  • Oil Bath Axles
Battery and Boxes
  • Single Battery Box
  • Single Battery Box with Battery
  • Dual Battery Box
  • Dual Battery Box with (2) Batteries
  • 3' Carpeted Boot Box with Lid (Dress Only)
  • Full Width Carpeted Boot Box with Dual Lids (Dress Only)
  • 4' Carpeted Boot Box with Lid (Dress Only)
  • Full Width Padded Boot Box with Dual Lids (Dress Only)
Brakes
  • Electric / Hydraulic Brakes
  • Electric / Hydraulic "Disc" Brakes
Carpet (Dress Only)
  • Carpet Walls in Dress
  • Carpet Bulkhead Wall in Dress
  • Line/Insulate/Carpet Walls in Dress
  • Line/Insulate/Carpet Side Walls in Dress
  • Line/Insulate/Carpet Walls in Gooseneck
Clothes Rod
  • Clothes Rod (5 Feet)
  • Clothes Rod (5+ Feet)
Coupler
  • 2-5/16 Fulton Cable Release
  • King Pin Coupler on Inner Pipe
Doors (Dress Only)
  • Walk Thru Door in Bulkhead Wall
  • Make Standard Dress Door Wider (37" to 50")
Electrical
  • Breaker Box, (1)110v Outlet and Shore Plug
  • Additional 110v Outlet
  • Shore Power Cord, 30amp or 50amp
  • Voyager IR Color Camera Systems
Exterior Skin
  • Pre-Painted White Exterior Skin (Standard)
  • Pre-Painted Black Exterior Skin
  • Pre-Painted Gray Exterior Skin
  • Pre-Painted Red Exterior Skin
  • Custom Painted Exterior Skin
  • Mill Finish (Natural) Exterior Skin
  • Stainless Steel Nose Sheets
  • Stainless Steel Nose and Gooseneck Side Sheets
  • Stainless Steel Side Sheets
  • Polished Slat
  • Polished Fenders
  • Polished Top Rail
  • Polished Bottom Rail
  • Polished Door Frames and Flush Mount
  • Polished Rear Corner Posts and Rear Header
  • Hinged Slat to Cover Air Gap
  • Smooth Skin with Hehr Drop Down Windows in lieu of Air Spaces
Footage
  • Add Footage to Stock Area
  • Delete Footage from Stock Area
  • Add Footage to Dress (Dress Only)
Gates (Center)
  • Slide Rail for Center Gates
  • Slam Latch on Swing Gates on Slide Rail
  • No Step 1/2 or 3/4 Swing Gate Inside a Center Gate (Slide Rail Gate Only)
  • 1/2 Slide, 1/2 Swing or 3/4 Swing Gates Inside of Center Gate (Dress Only)
Gates (Escape)
  • Sealed Escape Door with Hehr Window
  • Frame and Seal Escape Gate
  • Additional Escape Gate
Height
  • 6' (Standard) with Options to Increase Height in 6" Increments
Hooks
  • Bridle Hooks Welded on Bar
Jacks
  • Spring Loaded Jack
  • Single 2-Speed Jack
  • Dual Single Speed Jack
  • Dual 2-Speed Jack
  • Hydraulic Single Leg Jack
Lights
  • Clear Lens LED Clearance Lights
  • LED Running Lights on Bottom Rail
  • Add Standard LED Dome Lights (390 Lumens)
  • LED 6"x18" Dome Lights (880 Lumens)
  • Extra LED Turn Signals Mounted in Slats
  • Porch Light
  • Additional LED Clearance Lights
  • Backup Lights
  • 3/4" LED Button Lights (Replace Standard Lights)
  • Extra LED Turn Signals Mounted in Fender
  • Halogen Load Lights
  • Halogen High Intensity Load Light
  • LED Load Light (1042 Lumens)
  • LED Scene Load Light
  • LED High Turn on Rear
  • LED Dome Light Place Under Nose
  • Recessed Lighted Sign for Nose (Lettering Not Included)
Mats
  • Rubber Floor Mats
  • WERM Flooring
Miscellaneous
  • Water Tanks
  • Water Tank with Pump
  • Waterers
  • Misters
  • AM/FM/CD with Inside, Ouside and Stock Area Speakers
  • Brush Trays (Dress Only)
Noses
  • V Nose
  • Enclose Under Nose with 3 Doors
  • Enclose Undernose with Roll Up Door
  • Enclose Under Nose with Full Width Lift Door with (2) Access Doors in Lift Up
Paint
  • Paint Top Rail
  • Paint Top Rail and Bottom GN Rail
  • Paint Drop Gussets
  • Paint Smooth Sheets
  • Paint Side Slat
  • Paint Bottom Rail
  • Paint Coupler
  • Paint Landing Gear and Handle
  • Paint Rear Corner Posts and Rear Header
  • Paint Door or Ramp
Pens and Accessories
  • Adjustable Pens (50/50 and 60/40)
  • Split Pens
  • Add 12" Height to Standard Pens
  • Low Latches on Pen Gates
  • Feeder Bracket Rods
  • 60/40 or 50/50 Removable Pens with Removable Full Height Posts
Plexiglass
  • Plexiglass (Sides)
  • Plexiglass Storage Under Gooseneck
Ramps
  • 48" Tall Spring Loaded Rear Ramp
  • 52" Tall Spring Loaded Rear Ramp
  • Full Height Spring Loaded Side Ramp
Roof
  • Insulate and Line Roof and Top Rail (Natural Aluminum)
  • Insulate and Line Roof and Top Rail (White)
Steps
  • 8" Fold Up Camper Step
  • 12" Fold Up Camper Step
  • Step Cleats
Ties
  • Welded Trailer Ties (Interior)
  • Bolted Ties (Exterior)
  • Tie Rails (Interior)
  • Outside Tie Rails (Polished or Unpolished)
Vents
  • Lunar Dome Roof Vent
  • Two Way Roof Vent
Wall Lining
  • Double Wall and Insulate Side Walls (Natural Mill Finish)
  • Double Wall and Insulate Side Walls (White)
  • Line and Insulate Dress Walls and Gooseneck (Natural Mill Finish) (Dress Only)
  • Line and Insulate Dress Walls and Gooseneck (Natural Mill Finish) (Dress Only)
Wheels
  • Stainless Steel Simulators
  • Alcoa Aluminum Wheels
Width
  • 6' 8" (Standard), 7'6", and 8'

Trailer Details

Components
  • DoorsAll Elite built doors are engineered with heavy duty, proprietary extrusions and constructed to allow for maximum seal.
  • LightingElite utilizes LED interior and exterior clearance lighting in all wiring harnesses. All wiring connections are plugs or are soldered, covered with heat shrink material.
  • Bulkhead Wall.090" smooth sheet welded on to our heavy duty wall posts.
  • Lining and InsulationWith 4 tiers of protection, Elite Horse Trailers provide the protection from horses kicking and pawing, and help prevent sidewall damage and exterior dings.
  • Axles and TiresElite uses Dexter Rubber Torsion axles with electric brakes and name brand tires. Our trailers are engineered with accurate weights that provide proper axle and tire size based on the total weight of the trailer and it's contents, including living quarters.
  • HingesElite's proprietary, heavy duty, extruded hinge is used for doors and dividers. This hinge is fitted with a brass fitting that lubricates and allows for a tighter fit with the stainless pin. This hinge is welded to the structure to give us the strongest hinge possible.
  • WindowsElite only uses HEHR windows. Available in many sizes and types, you can rest assured that they will be installed, worry free.
  • Saddle RacksThe Elite built carpeted saddle racks are designed to hold a large variety of today's saddles.
  • Wall RubberThe wall rubber on our trailers is corded rubber matting that is able to absorb impacts that would damage lesser made products.
  • CarpetMarine grade carpeting is used in the tack room and other applications to assure a long life.
Structure
  • Top RailContinuous 5" radius rail with an overall height of 8" and a material thickness of 3/16" with an integrated drip rail.
  • Drop Gusset3/16" thickness, welded one piece gussets which add structure to provide maximum nose strength.
  • Drop Wall3/16" thickness with an engineered break on the top and bottom adds strength and allows for a cleaner weld area to ensure against leakage.
  • FlooringElite's floor structure consists of 4" I beams with an upper 2 1'2" flange and a lower 3" flange on 12" centers. Elite utilizes a .125" thick, 5086 marine grade sheet floor on top of the structure.
  • Rear FrameThe rear frame is supported by a 2 1/2" x 5" upper header at a 1/4" thickness. For added strength, the rear frame side post is integrated through the floor into the bottom rail.
  • Aluminum Side Wall Construction6005 T6 aluminum alloy posts with 7" posts at the drop wall, 5" x 1 3/8" at doors and dividers, and 1 3/8" x 2 1/2" for all other side wall structure posts. The exterior, 6063 aluminum interlocking extruded slat is .125 thick. Exterior smooth sheets are a 3004 aluminum alloy with a H291 temper and thickness of up to .063".
  • Roof Construction1" x 2 1/2" arched roof bows with one piece, .040" thick 3003 H16 aluminum roof sheet.

Floor Plans

  •  Download
  • Low Pro Gooseneck
  • Low Pro Gooseneck with Dress

Downloads

Downloads
  •  ViewDownload
  • User's Manual

Gallery
