Bumper Pull Show Cattle Aluminum Trailer

Elite Show Cattle Combo can be configured to meet a wide variety of uses to include small livestock, cattle and horse transportation or even a combination of each. The size of the tack room can be customized to fit your needs and the stock area can be designed with adjustable gate rails and a side ramp for our customers that show cattle, pen systems for those that show small livestock or slant wall, saddle racks and slant gates for the horse person.

Standard Trailer Features

Exterior
  • 2-5/16" Bulldog Coupler with Safety Chains and Breakaway Kit
  • 3' Wedge Nose
  • 8,000 Pound 2" Square Drop Leg Jack
  • .040 One Piece Aluminum Roof Sheet
  • Full Length Side Slats with Two Air Spaces and Natural Smooth Sheets
  • Rubber Torsion Axles with Electric Breaks
  • Radial Tires with Steel Wheels
  • Full Width Rear Gate with 1/2 Slider and Pipe Hardware
  • 4" Rubber Docking Bumper
  • Escape Gate (Streetside or Curbside)
  • 7 Way Plug and Wiring
  • Dressing Room Door with Hehr Window (Streetside or Curbside)
  • Recessed Exterior Light Switches
  • LED Turn Signals at Rear
  • LED Dome and Clearance Lights
Stock Area
  • Center Gate
  • Marine Grade Aluminum Treadplate Floor
Tack
  • Front Tack Compartment with Dress Door and Hehr Window
  • Marine Grade Carpet on Floor
Base Dimensions
  •  WidthLengthHeight
  • Show Cattle7'16'+6'6"+

Popular Options

Air Conditioner
  • 13,500 BTU A/C Unit with Heat Strip
  • 13, 500 BTU Low Pro A/C Unit with Heat Strip and Thermostat
  • Frame for A/C
  • Frame and Pre Wire for Future A/C Unit
Awnings
  • Domestic 2 Step Awning
Axles
  • EZ Lube Axles
  • Oil Bath Axles
  • Block Axles 2" and Lower Fenders
  • Taper Inner Fenders
  • Brush Fenders
Battery and Boxes
  • Single Battery Box
  • Single Battery Box with Battery
  • Dual Battery Box
  • Dual Battery Box with (2) Batteries
  • 3' Carpeted Boot Box with Lid
  • Full Width Carpeted Boot Box with Dual Lids
  • 4' Carpeted Boot Box with Lid
  • Full Width Padded Boot Box with Dual Lids
Brakes
  • Electric / Hydraulic Brakes
  • Electric / Hydraulic "Disc" Brakes
Carpet
  • Carpet Side Walls in Dress
  • Carpet Bulkhead Wall in Dress
  • Line/Insulate/Carpet Side Walls in Dress
Clothes Rod
  • Clothes Rod (5 Feet)
  • Clothes Rod (5+ Feet)
Coupler
  • Extended Tongue
Dividers
  • Add Horse Divider(s)
Doors
  • Walk Thru Door in Bulkhead Wall
  • Side Access Door
  • Make Standard Dress Door Wider (37" to 50")
Electrical
  • Breaker Box, (1)110v Outlet and Shore Plug
  • Additional 110v Outlet
  • Shore Power Cord, 30amp or 50amp
  • Voyager IR Color Camera Systems
Exterior Skin
  • Pre-Painted White Exterior Skin (Standard)
  • Pre-Painted Black Exterior Skin
  • Pre-Painted Gray Exterior Skin
  • Pre-Painted Red Exterior Skin
  • Custom Painted Exterior Skin
  • Mill Finish (Natural) Exterior Skin
  • Stainless Steel Nose Sheets
  • Stainless Steel Nose and Gooseneck Side Sheets
  • Stainless Steel Side Sheets
  • Polished Slat
  • Polished Fenders
  • Polished Top Rail
  • Polished Bottom Rail
  • Polished Door Frames and Flush Mount
  • Polished Rear Corner Posts and Rear Header
  • 2" Air Space Above Fenders
  • Hinged Slat to Cover Air Gap
  • Smooth Skin with Hehr Drop Down Windows in lieu of Air Spaces
Footage
  • Add Footage to Stock Area
  • Delete Footage from Stock Area
  • Add Footage to Dress
Gates (Center)
  • 1/2 Slide Gate Inside Center Gate
  • 1/2 Swing Gate Inside Center Gate
  • 3/4 Swing Gate Inside Center Gate
  • Full Swing Gate Inside Center Gate
  • Additonal Center Gates
  • Additional Center Gates Settings
  • Slide Rail for Center Gates
  • Slam Latch on Swing Gates on Slide Rail
  • Make Center Gate Slide Between Fenders (Slide Rail Gates Only)
  • No Step 1/2 or 3/4 Swing Gate Inside a Center Gate (Slide Rail Gate Only)
  • Run Center Gate at Slant (with Stock Trailer Slam Latch)
  • Flow Thru Bars Top of Center Gate (Replaces Slats and Air Spaces)
Gates (Escape)
  • Make Standard Escape Gate Wider (37" to 50")
  • Add Single Pipe Hardware to Escape Gate
  • Frame and Seal Escape Gate
  • Additional Escape Gate
Gates (Rear)
  • Full Width Rear Gate (No 1/2 Slider)
  • Full Width Rear Gate with Roll Up Gate
  • Double Rear gates with Double Pipe Hardware
  • Exterior Safe Load Spring Loaded Slamt Latch (Full Width Rear Gates)
  • Double Swing Full Width Rear Gate with Double Pipe Hardware (Gate will open Streetside or Curbside)
Hay Rack
  • Hay Rack with Aerodyne Nose and Tie Rails
  • Enclosed Haypod with Aerodyne Nose
Height
  • 6'6" (Standard) with Options to Increase Height in 6" Increments (5'6" and 6' Available, Removes Nose Windows)
Jacks
  • 3.5K Electric Jack
  • Hydraulic Single Leg Jack
Lights
  • Clear Lens LED Clearance Lights
  • LED Running Lights on Bottom Rail
  • Add Standard LED Dome Lights (390 Lumens)
  • LED 6"x18" Dome Lights (880 Lumens)
  • Extra LED Turn Signals Mounted in Slats
  • Porch Light
  • Additional LED Clearance Lights
  • Backup Lights
  • 3/4" LED Button Lights (Replace Standard Lights)
  • Extra LED Turn Signals Mounted in Fender
  • Halogen Load Lights
  • Halogen High Intensity Load Light
  • LED Load Light (1042 Lumens)
  • LED Scene Load Light
  • LED High Turn on Rear
  • LED High Turns on Rear
Mats
  • Rubber Floor Mats
  • WERM Flooring
Miscellaneous
  • Chute Rack on Side of Trailer
  • Panel Rack on Side of Trailer
  • Saddle Racks
  • Saddle Racks located on Tack Door
  • Swingout Saddle Racks
  • Hat Shelf
  • Water Tanks
  • Water Tank with Pump
  • Waterers
  • Misters
  • Bridle Hooks
  • Brush Trays
  • Hehr Windows (Multiple Sizes and Types)
  • AM/FM/CD with Inside, Ouside and Stock Area Speakers
Noses
  • Treadplate Gravel Guard (18")
Paint
  • Paint Top Rail
  • Paint Smooth Sheets
  • Paint Side Slat
  • Paint Bottom Rail
  • Paint Coupler
  • Paint Landing Gear and Handle
  • Paint Rear Corner Posts and Rear Header
  • Paint Door or Ramp
Pens and Accessories
  • Adjustable Pens (50/50 and 60/40)
  • Split Pens
  • Add 12" Height to Standard Pens
  • Low Latches on Pen Gates
  • Feeder Bracket Rods
  • 60/40 or 50/50 Removable Pens with Removable Full Height Posts
Plexiglass
  • Plexiglass and Track (Rear and Escape Gates)
  • Plexiglass and Track Only (Rear and Escape Gates)
  • Plexiglass (Sides)
  • Plexiglass Storage Box (Mounted Inside)
Ramps
  • 48" Tall Spring Loaded Rear Ramp
  • 52" Tall Spring Loaded Rear Ramp
Roof
  • Insulate and Line Roof and Top Rail (Natural Aluminum)
  • Insulate and Line Roof and Top Rail (White)
Steps
  • 8" Fold Up Camper Step
  • 12" Fold Up Camper Step
  • Step Cleats
Ties
  • Welded Trailer Ties (Interior)
  • Bolted Ties (Exterior)
  • Bolted Stainless Steel Ties (Exterior)
  • Tie Rails (Interior)
  • Outside Tie Rails (Polished or Unpolished)
Vents
  • 6" Butterfly Vent
  • Lunar Dome Roof Vent
  • Two Way Roof Vent
Wall Lining
  • Rubber, Double Wall and Insulate Stock Walls
  • Line and Insulate Dress Walls (Natural Mill Finish)
  • Line and Insulate Dress Walls (White)
Wheels
  • Stainless Steel Simulators
  • Alcoa Aluminum Wheels
Width
  • 7' (Standard), 7'6", 8', 100" and 102"

Trailer Details

Components
  • DoorsAll Elite built doors are engineered with heavy duty, proprietary extrusions and constructed to allow for maximum seal.
  • LightingElite utilizes LED interior and exterior clearance lighting in all wiring harnesses. All wiring connections are plugs or are soldered, covered with heat shrink material.
  • Bulkhead Wall.090" smooth sheet welded on to our heavy duty wall posts.
  • Lining and InsulationWith 4 tiers of protection, Elite Horse Trailers provide the protection from horses kicking and pawing, and help prevent sidewall damage and exterior dings.
  • Axles and TiresElite uses Dexter Rubber Torsion axles with electric brakes and name brand tires. Our trailers are engineered with accurate weights that provide proper axle and tire size based on the total weight of the trailer and it's contents, including living quarters.
  • HingesElite's proprietary, heavy duty, extruded hinge is used for doors and dividers. This hinge is fitted with a brass fitting that lubricates and allows for a tighter fit with the stainless pin. This hinge is welded to the structure to give us the strongest hinge possible.
  • WindowsElite only uses HEHR windows. Available in many sizes and types, you can rest assured that they will be installed, worry free.
  • Saddle RacksThe Elite built carpeted saddle racks are designed to hold a large variety of today's saddles.
  • Wall RubberThe wall rubber on our trailers is corded rubber matting that is able to absorb impacts that would damage lesser made products.
  • CarpetMarine grade carpeting is used in the tack room and other applications to assure a long life.
Structure
  • Top RailContinuous 5" radius rail with an overall height of 8" and a material thickness of 3/16" with an integrated drip rail.
  • Drop Gusset3/16" thickness, welded one piece gussets which add structure to provide maximum nose strength.
  • Drop Wall3/16" thickness with an engineered break on the top and bottom adds strength and allows for a cleaner weld area to ensure against leakage.
  • FlooringElite's floor structure consists of 4" I beams with an upper 2 1'2" flange and a lower 3" flange on 12" centers. Elite utilizes a .125" thick, 5052 marine grade sheet floor on top of the structure.
  • Rear FrameThe rear frame is supported by a 2 1/2" x 5" upper header at a 1/4" thickness. For added strength, the rear frame side post is integrated through the floor into the bottom rail.
  • Aluminum Side Wall Construction6005 T6 aluminum alloy posts with 7" posts at the drop wall, 5" x 1 3/8" at doors and dividers, and 1 3/8" x 2 1/2" for all other side wall structure posts. The exterior, 6063 aluminum interlocking extruded slat is .125 thick. Exterior smooth sheets are a 3004 aluminum alloy with a H291 temper and thickness of up to .063".
  • Roof Construction1" x 2 1/2" arched roof bows with one piece, .040" thick 3003 H16 aluminum roof sheet.

Floor Plans

  •  Download
  • Show Cattle Bumper Pull

Downloads

Downloads
  •  ViewDownload
  • User's Manual

Gallery

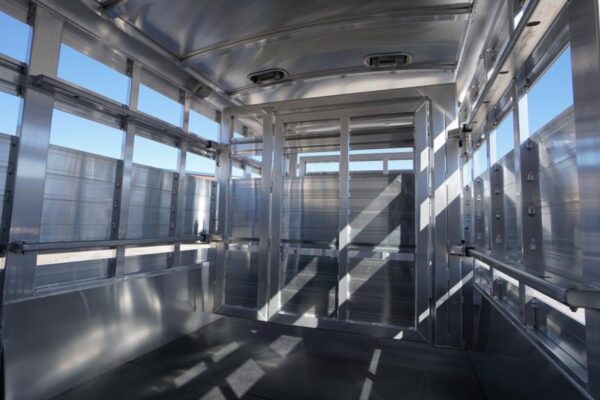

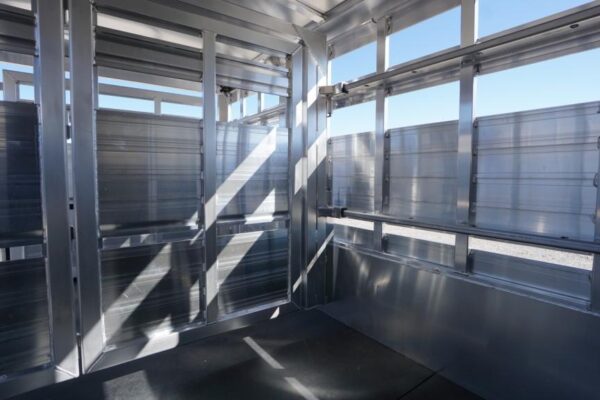

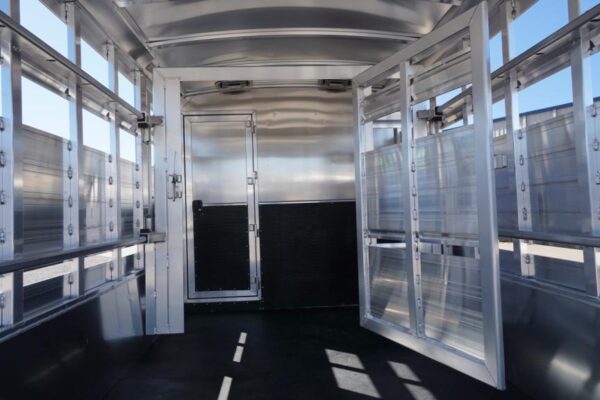

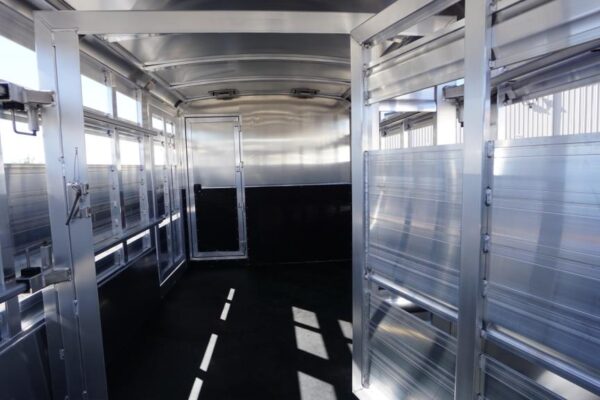

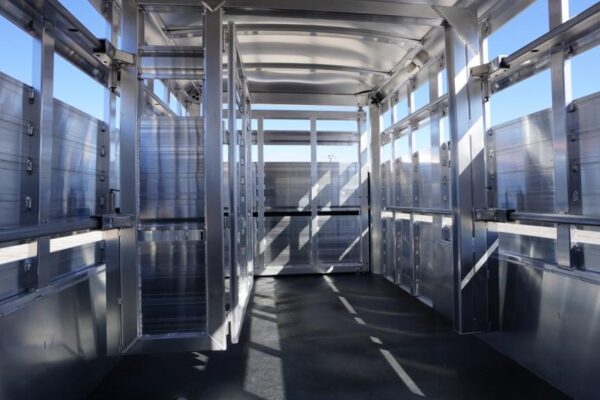

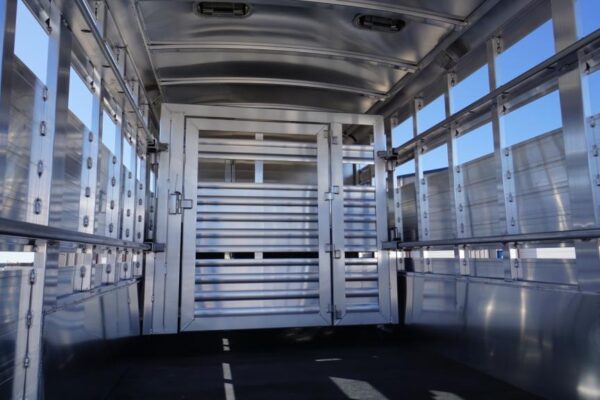

Show Cattle BP
