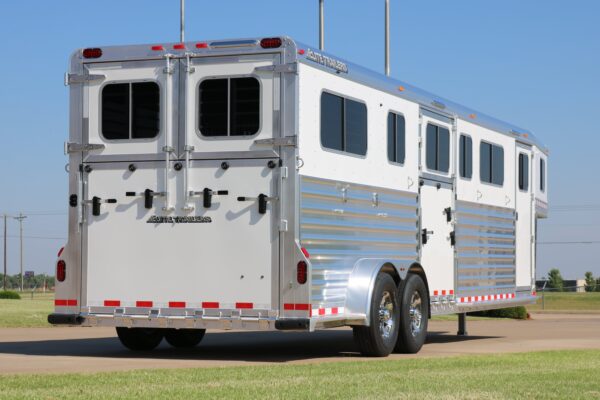

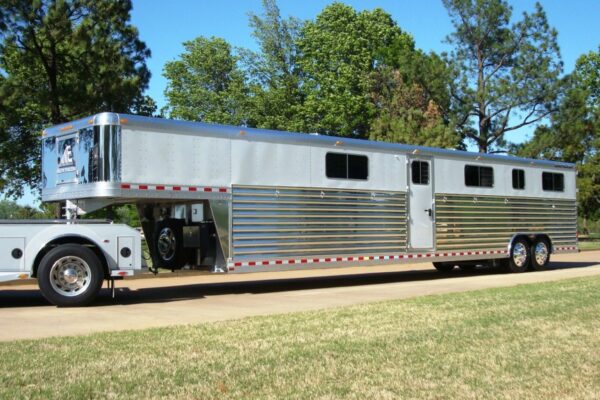

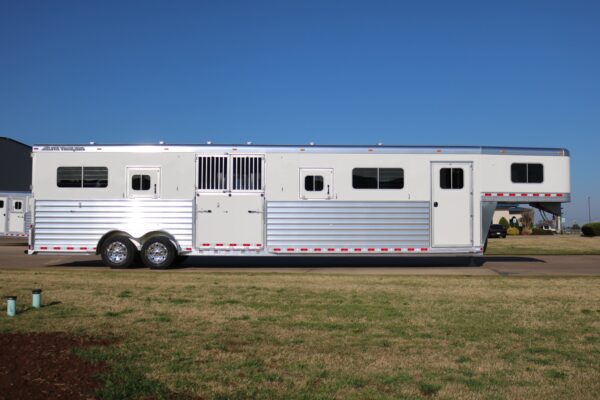

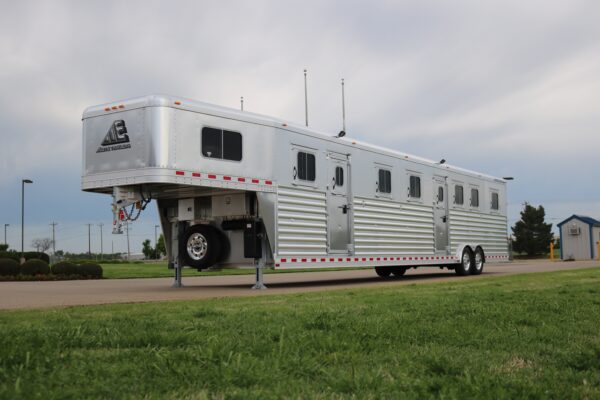

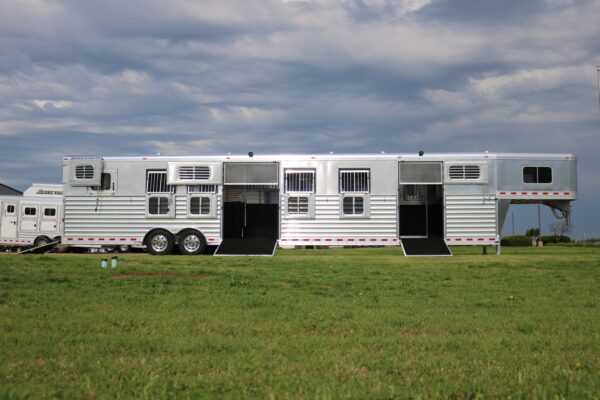

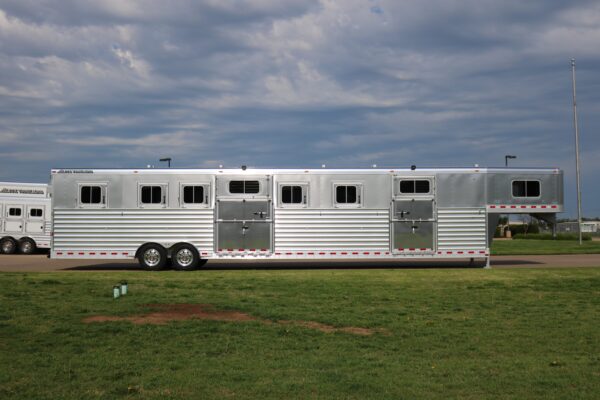

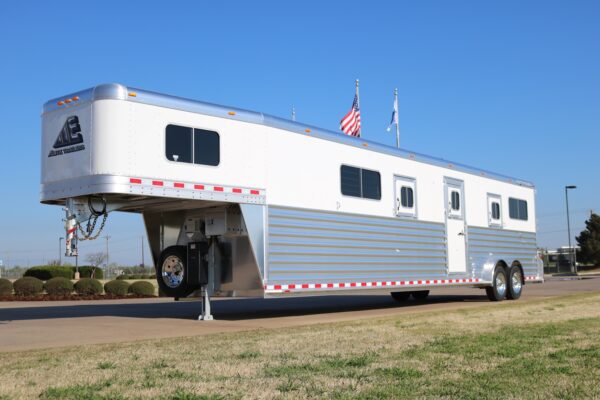

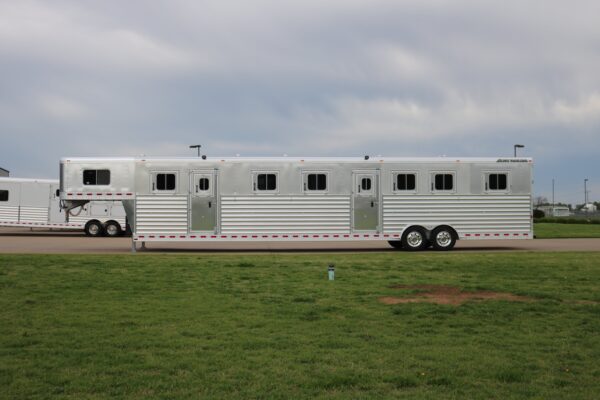

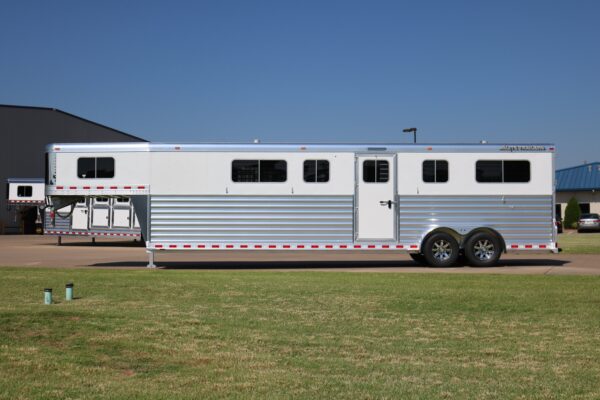

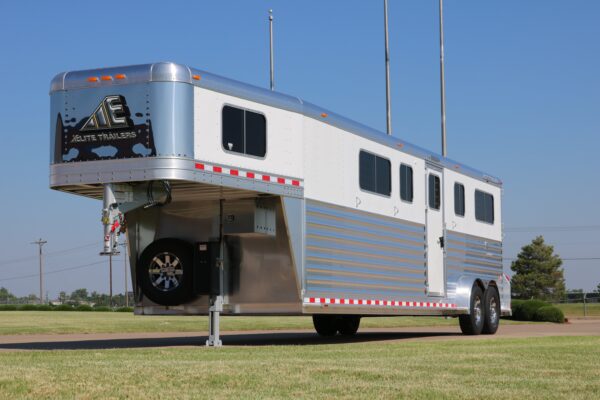

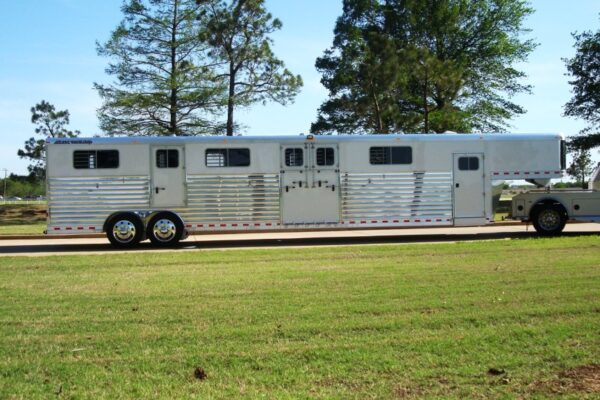

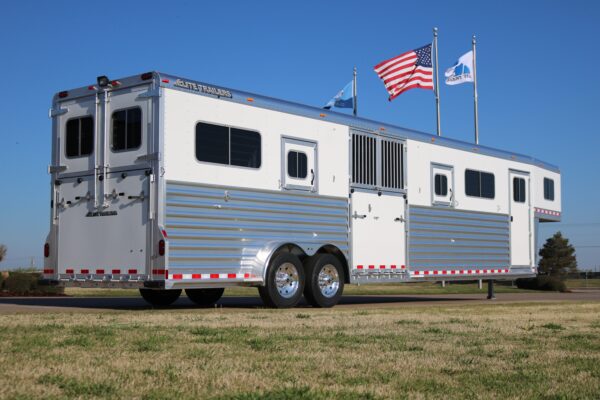

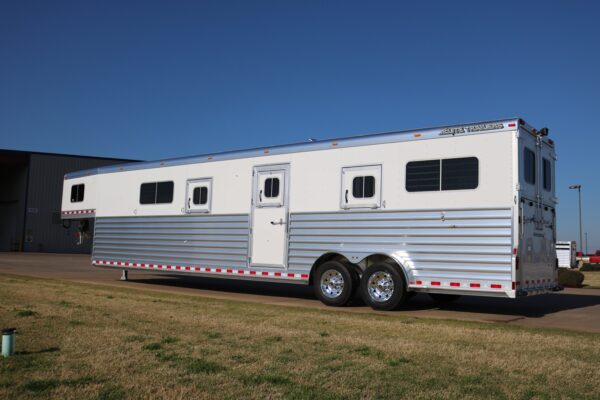

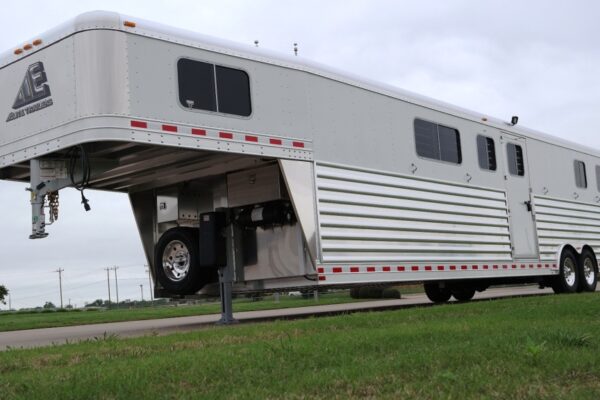

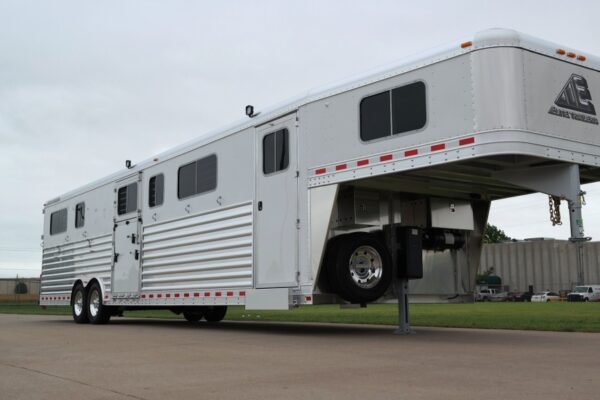

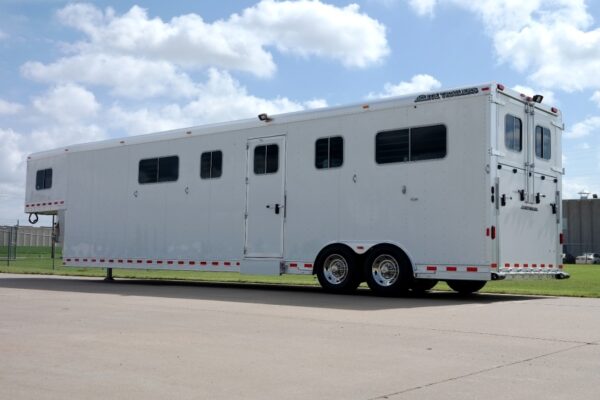

Gooseneck Head-to-Head Center Load Aluminum Horse Trailer

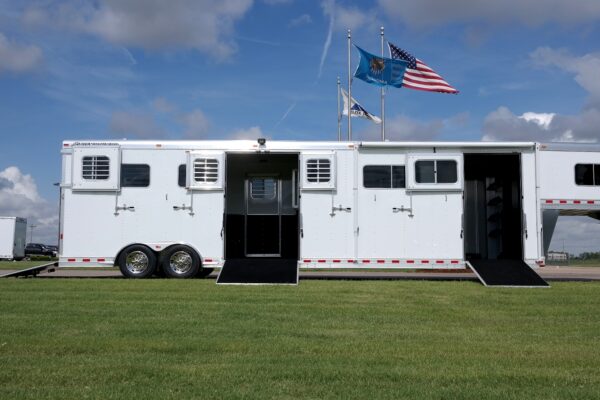

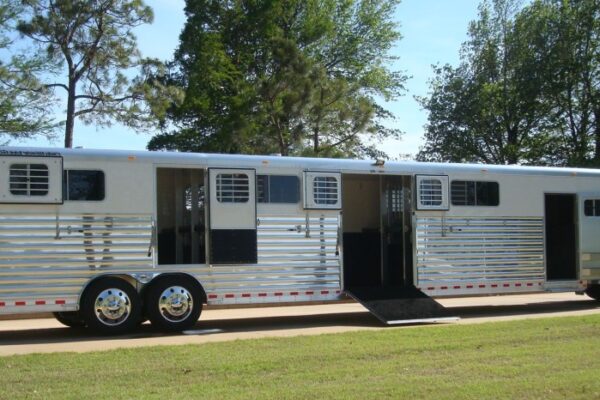

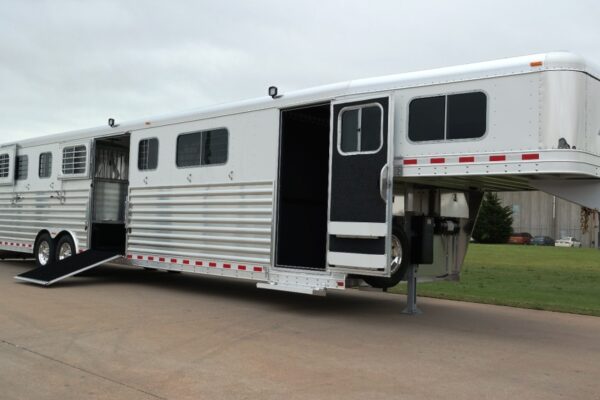

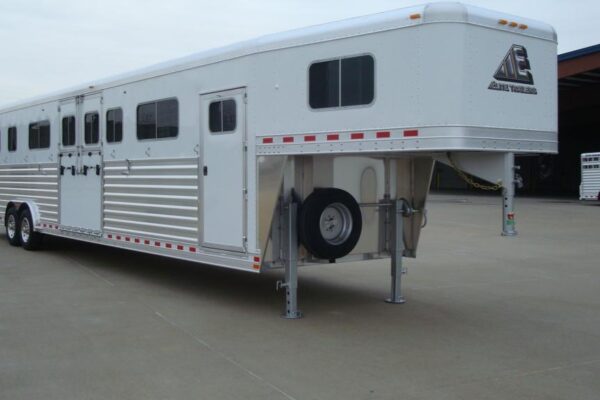

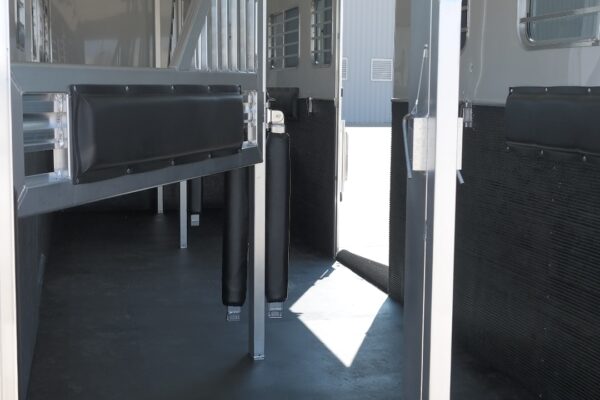

Head to head trailers, also referred to as center load trailers, will be designed typically for four to six horses & more. There will be two or three horse side by side in the rear of the trailer facing forward, then a center “alley” between the stalls, the two to three horses loaded side by side facing the rear of the trailer. There will be a side ramp and escape door into the center alley. This trailer will allow you to load or unload one horse from any specific location without having to unload other horses. This style of trailer is often converted into three box stalls. This is one of the most popular designs on the market today for the commercial hauler.
Standard Trailer Features
Exterior
- 2-5/16" Adjustable Coupler with Safety Chains and Breakaway Kit
- Single Speed Jack
- Full Length Side Slats with White Smooth Sheets Above

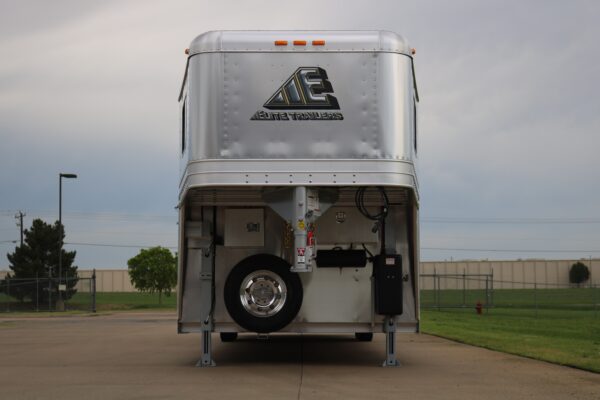

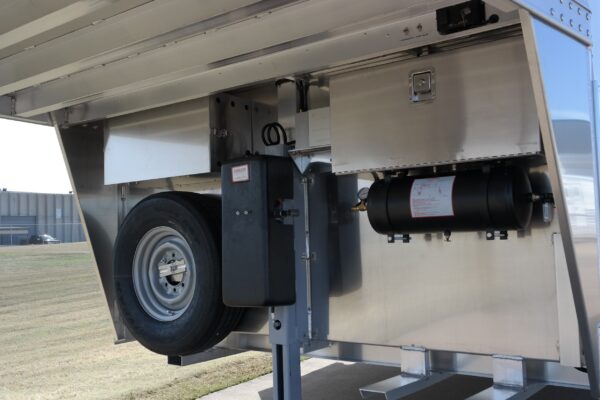

- 8' Long Nose with 2' Taper
- .040 One Piece Aluminum Roof Sheet
- Rubber Torsion Axles with Electric Breaks
- Radial Tires with Steel Wheels
- Stainless Steel Wheel Simulators
- Hehr 19"x34" Nose Windows

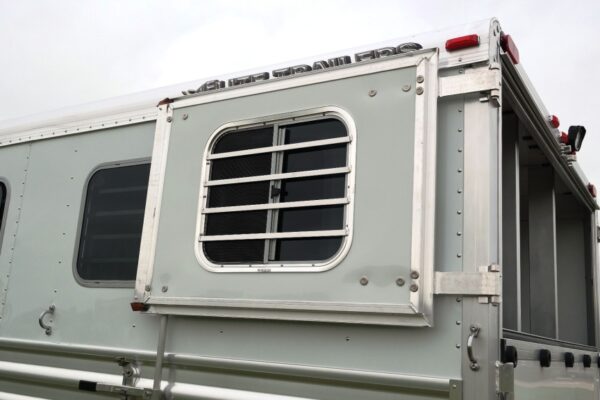

- Four Hehr 20" x 48" Windows with Welded Bars
- Four Hehr 20" x 24" Windows with Welded Bars

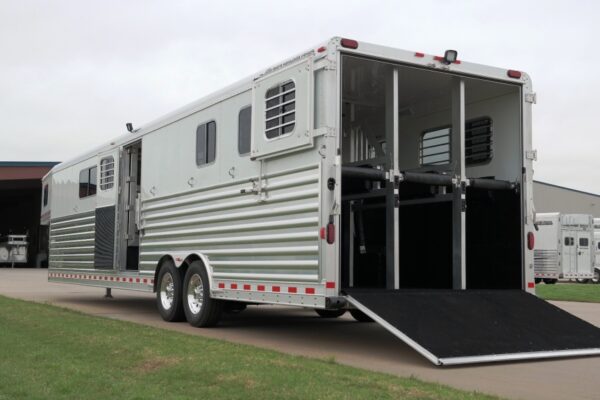

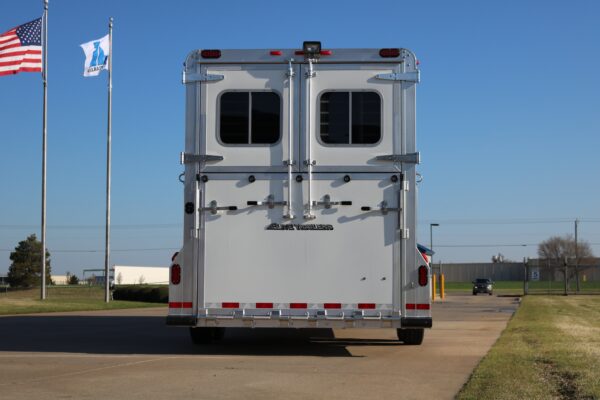

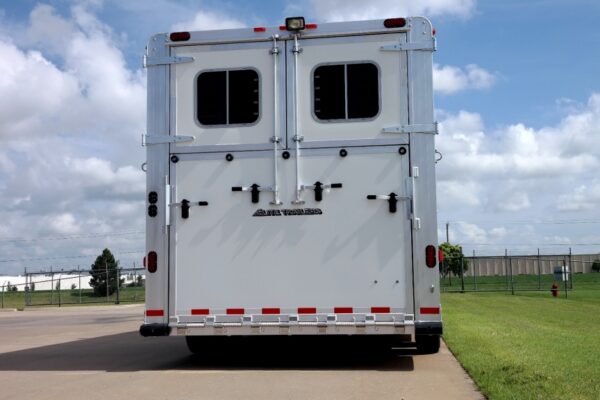

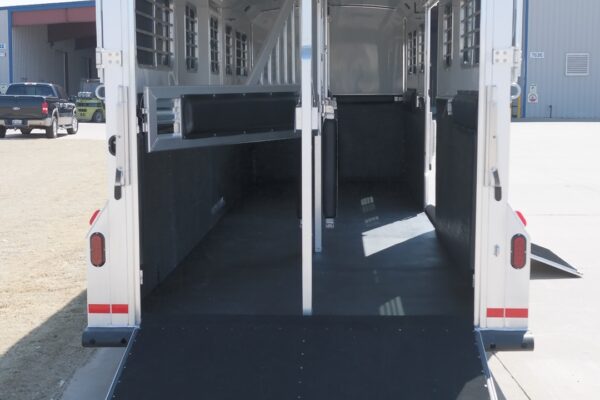

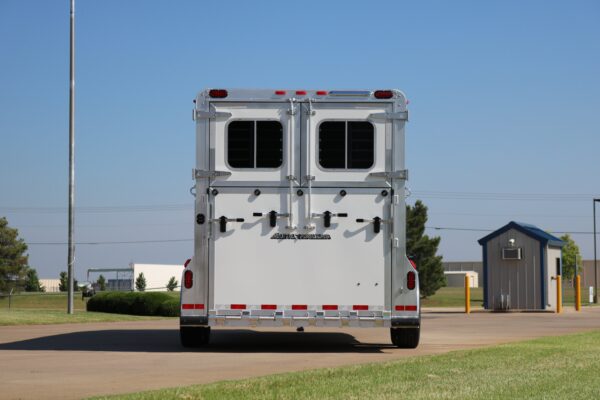

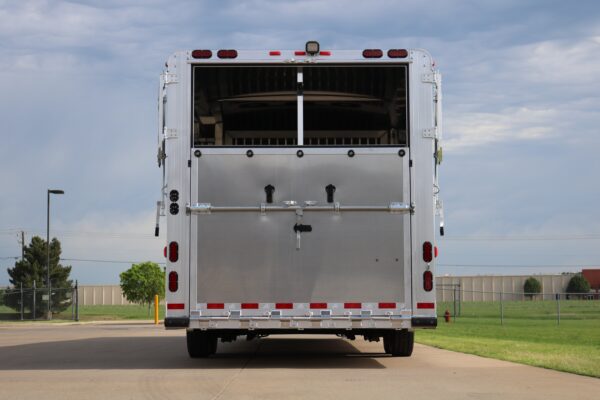

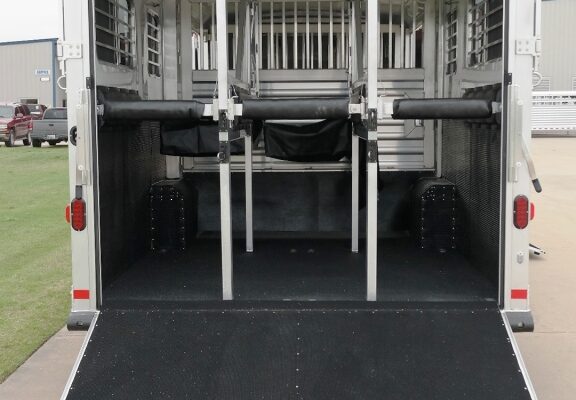

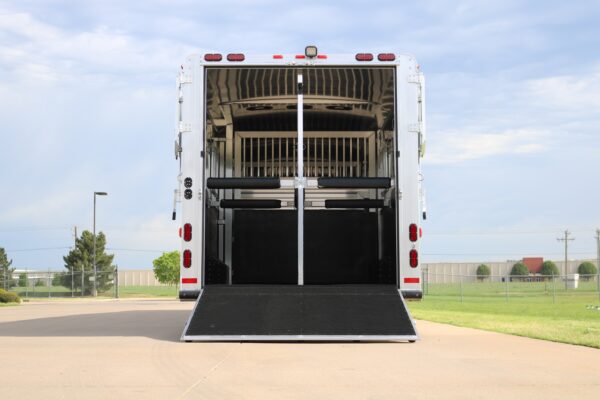

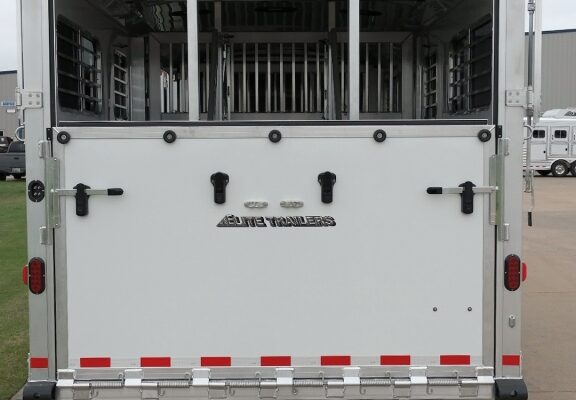

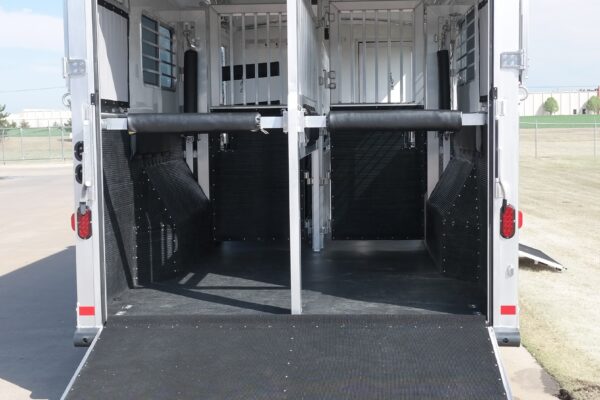

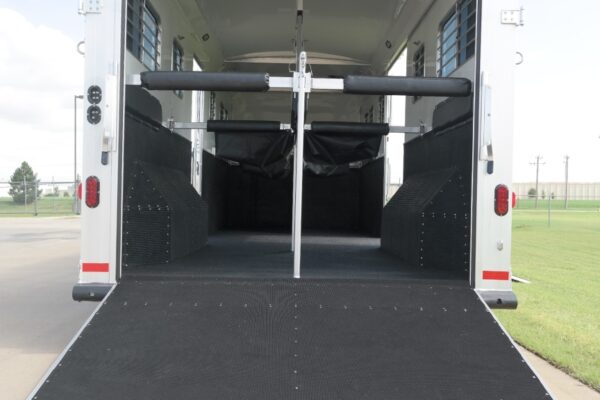

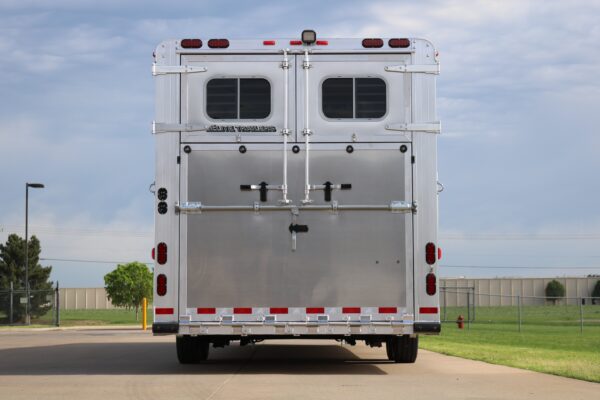

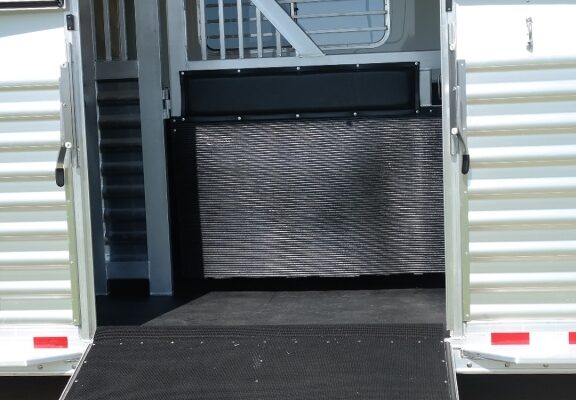

- Full Width Rear Ramp with 2 Dutch Doors Above
- 4" Rubber Docking Bumper
- Side Escape Door with Locking Seal Plate

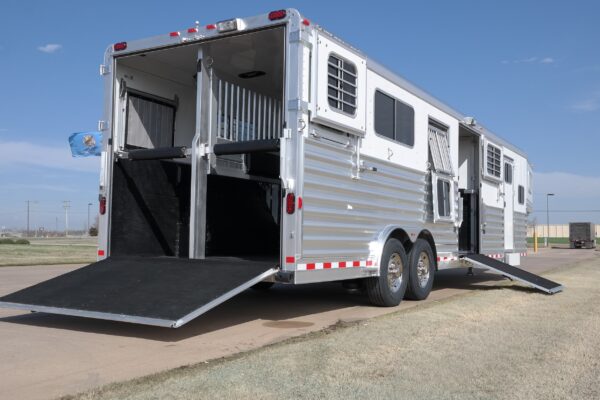

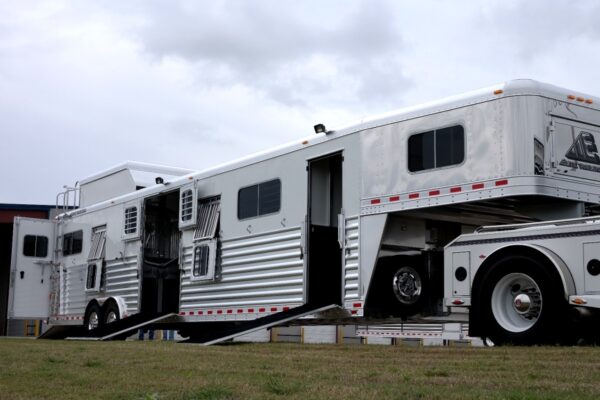

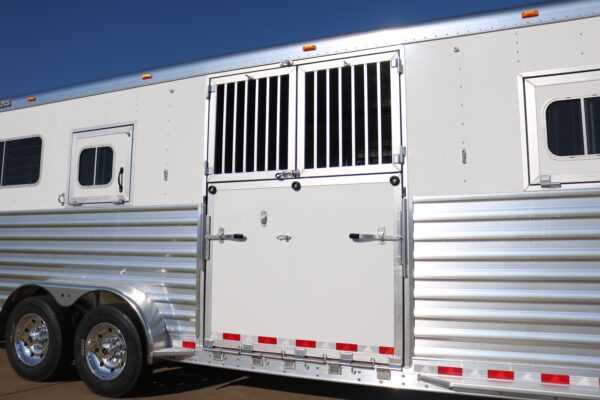

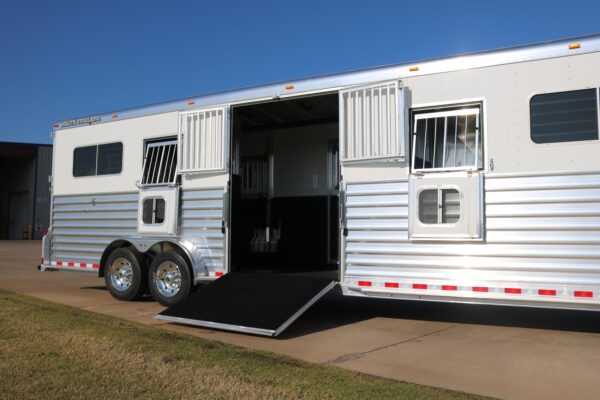

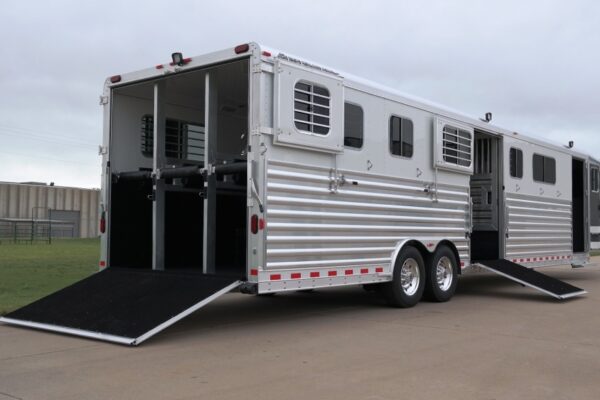

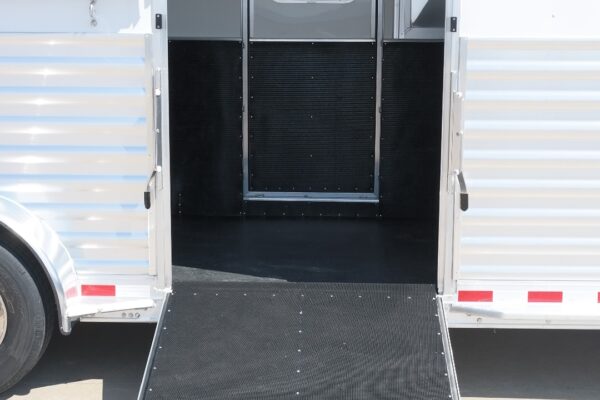

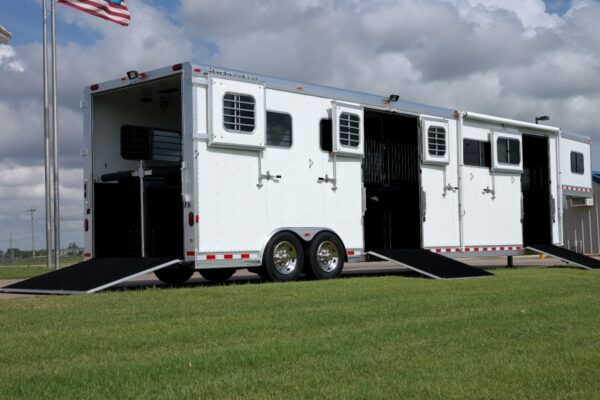

- Side Ramp with Dutch Door Above

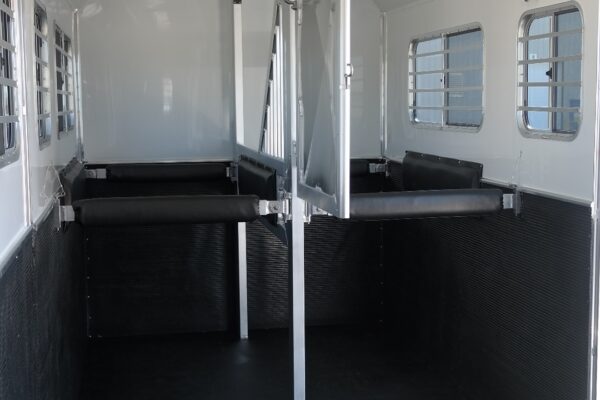

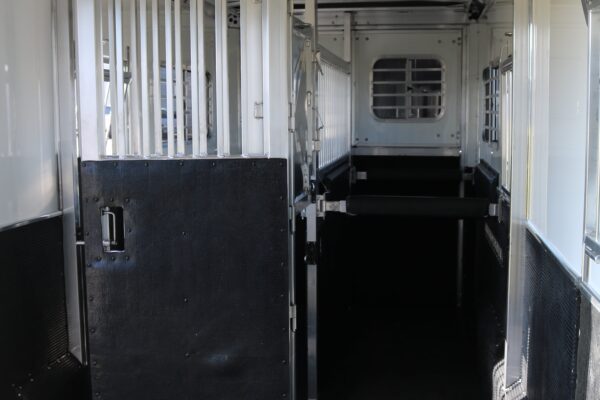

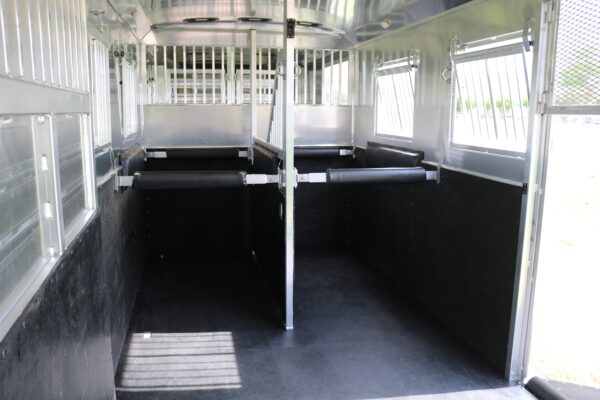

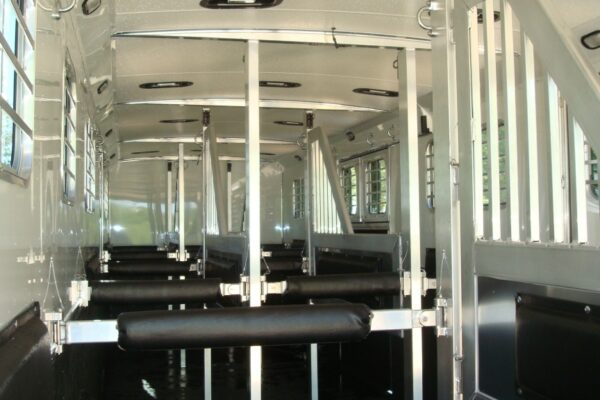

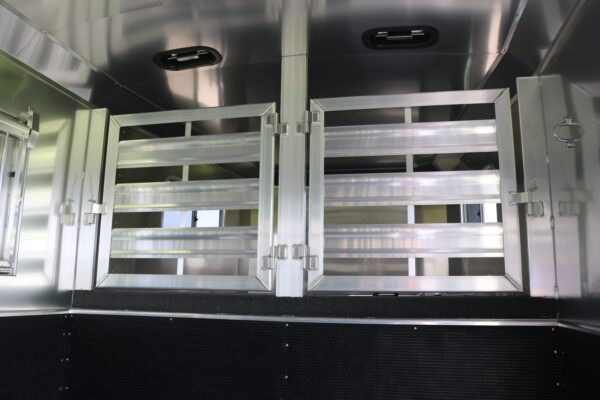

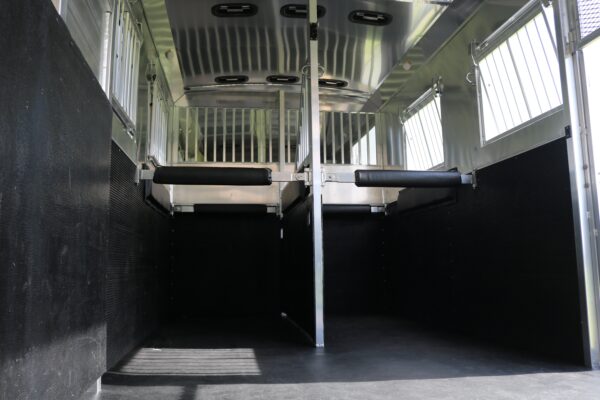

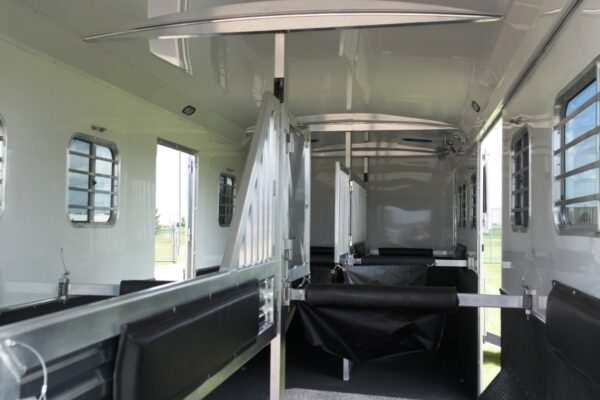

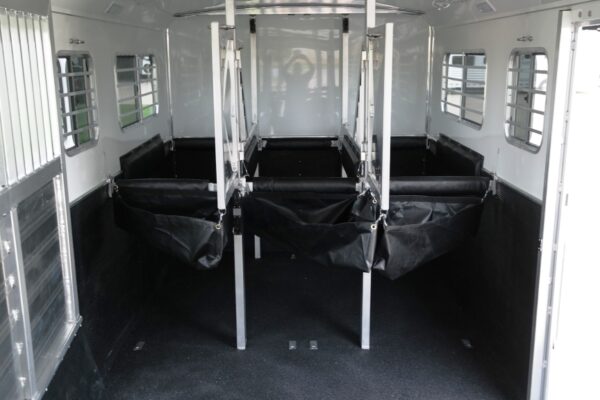

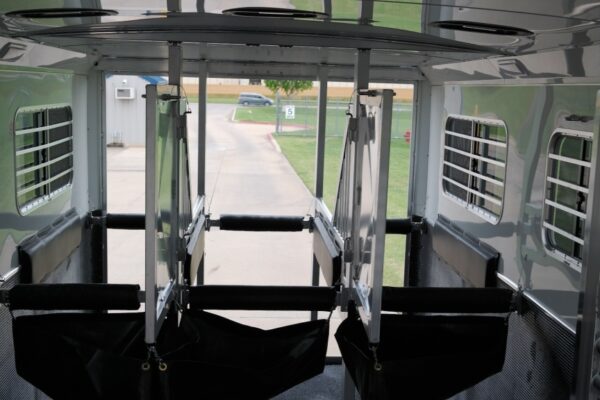

- Head to Head Dividers with Removable Head Shields and Stall Pads
- Two Exterior Ties per Stall
- Halogen Load Light at Rear
- LED Dome and Clearance Lights
- 7 Way Plug and Wiring
- Recessed Exterior Light Switches
- LED High and Low Turn Signals at Rear
- LED Dome and Clearance Lights

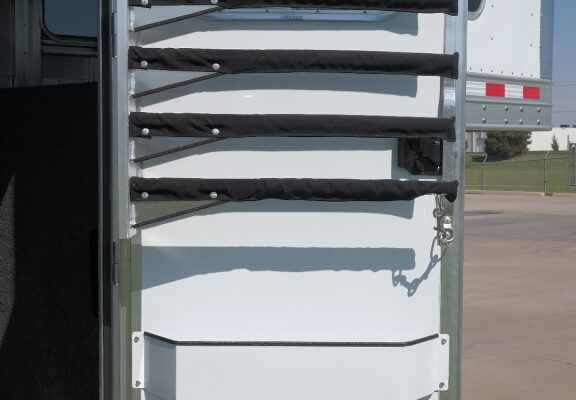

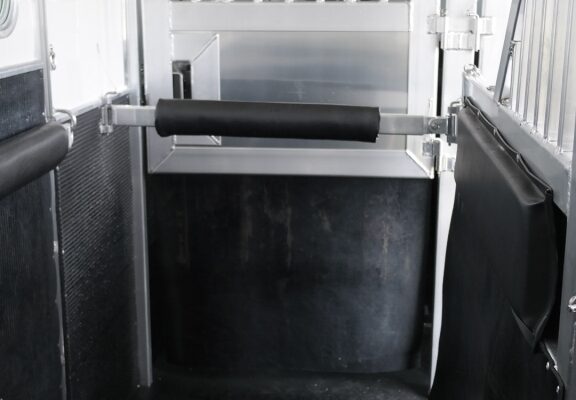

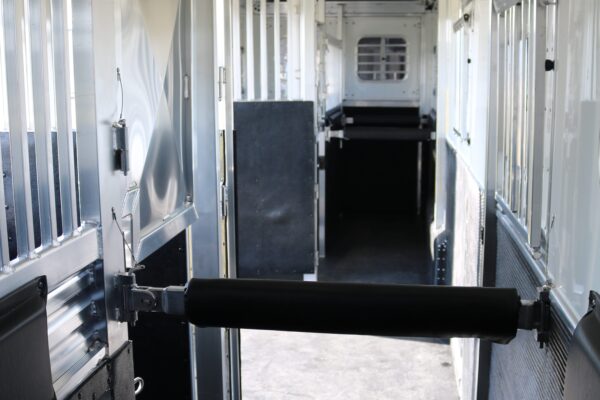

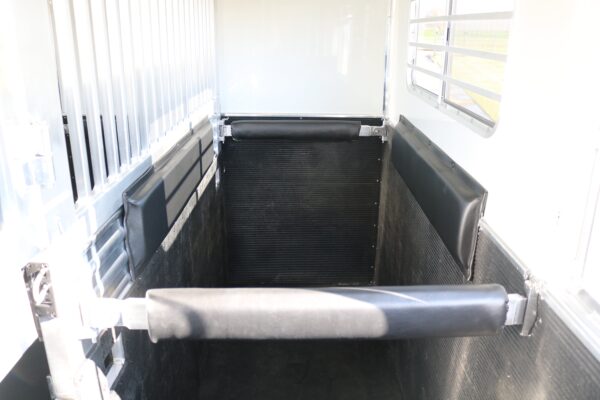

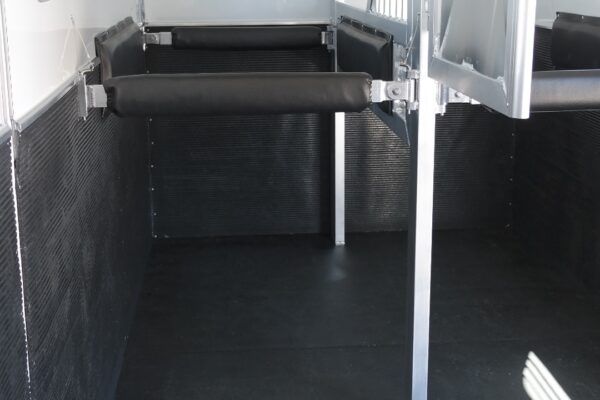

- Breast/Butt Bars
- Lined and Insulated Side Walls
- Rubber on Side Walls in Horse Area and Drop Wall

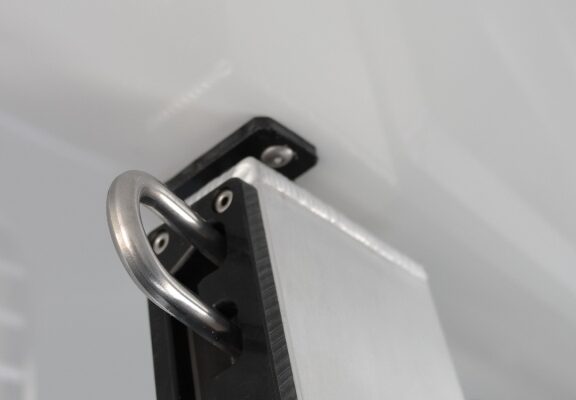

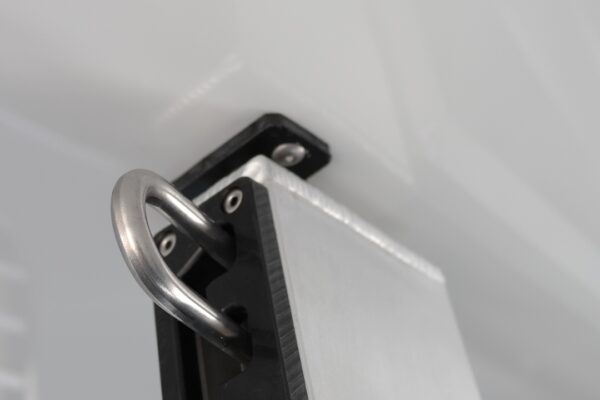

- Two Interior Ties per Stall
- .125 Smooth Aluminum Floor (5052 Marine Grade)
- Premium Rubber Mats on Floor in Horse Area

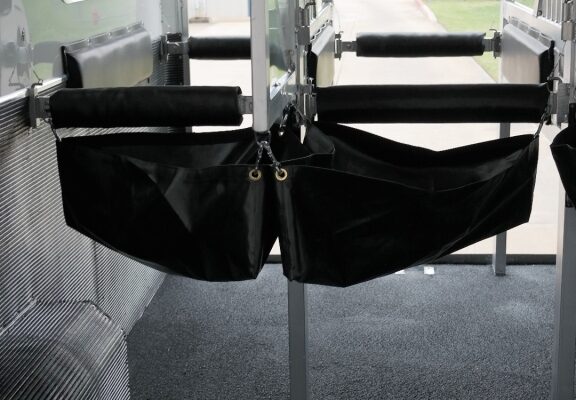

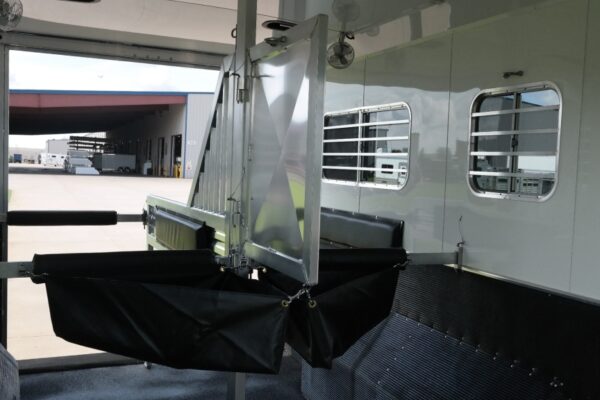

- One Feed Bag per Horse
- One Roof Vent per Stall
- 4 Horse and 6 Horse Models Available with Dress
- Dressing Room with Camper Door and Latch

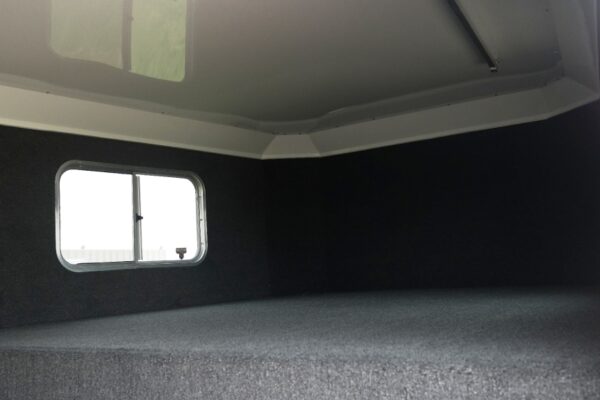

- Marine Carpet on Dress Floor, Drop and Bed

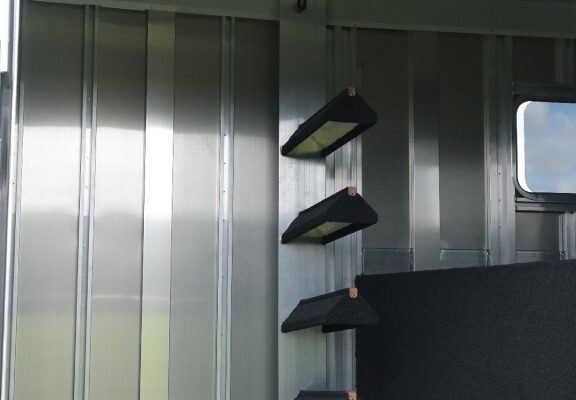

- One 4-Tier Saddle Rack (4 Horse Model)
- Two 3-Tier Saddle Racks (6 Horse Model)
- 10 Bridle Hooks
- Blanket Bar
Base Dimensions
- WidthLengthHeight
- 4 Horse Head-to-Head Center Load7'25'7'6"
- 4 Horse Head-to-Head Center Load with Dress7'29'7'6"
- 6 Horse Head-to-Head Center Load8'33'7'6"
Popular Options
Air Conditioner
Awnings
Axles
Bars
Battery and Boxes
Brakes
Carpet
Clothes Rod
Coupler
Dividers
Door (Dress/Tack Room)
Doors (Drop Down, Access and Walk Thru)
Door (Escape)
Door (Rear)
Electrical
Exterior Skin
Footage
Generator Compartment
Hayrack
Height
Hooks
Jacks
Latch
Lights
Lock
Mats
Nose
Paint
Ramps
Roof
Rubber
Saddle Racks
Shelf
Slide Out
Steps
Trays
Ties
Vents
Water Tanks
Wall Lining
Wheels
Width
Windows (Multiple Sizes)
Trailer Details
Components
- DoorsAll Elite built doors are engineered with heavy duty, proprietary extrusions and constructed to allow for maximum seal.

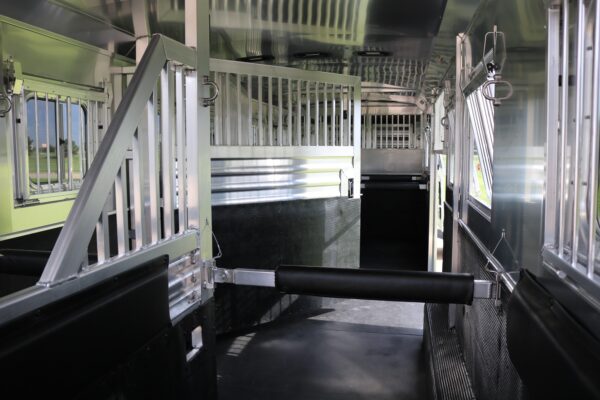

- Drop BarsElite built drop down bar mechanism is machined to allow ease of use. Independent from the drop down door allows for simple use.
- LightingElite utilizes LED interior and exterior clearance lighting in all wiring harnesses. All wiring connections are plugs or are soldered, covered with heat shrink material.

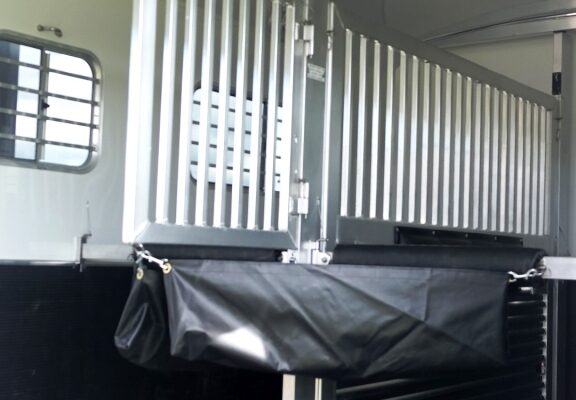

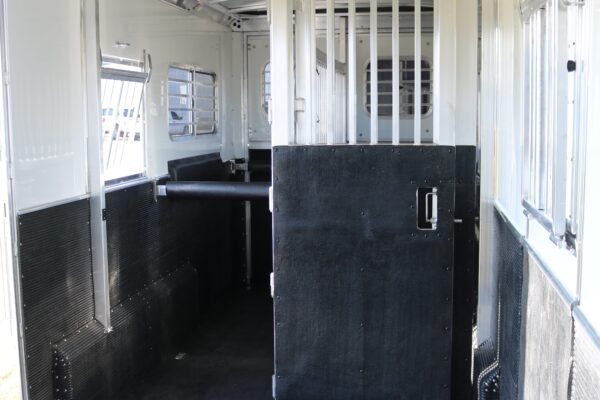

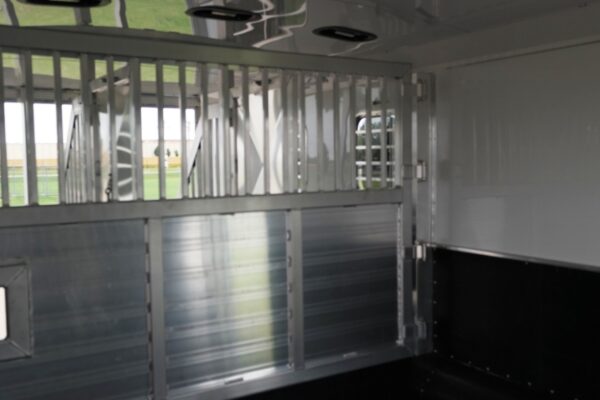

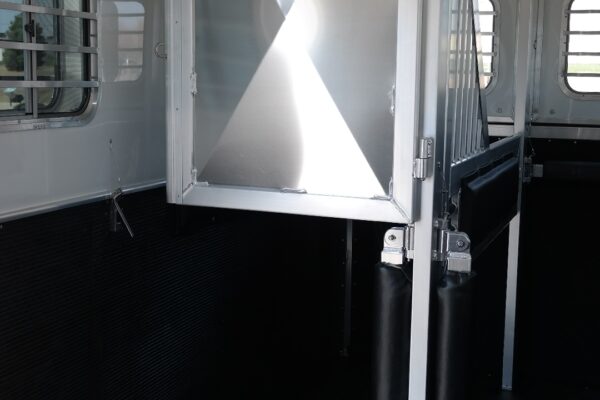

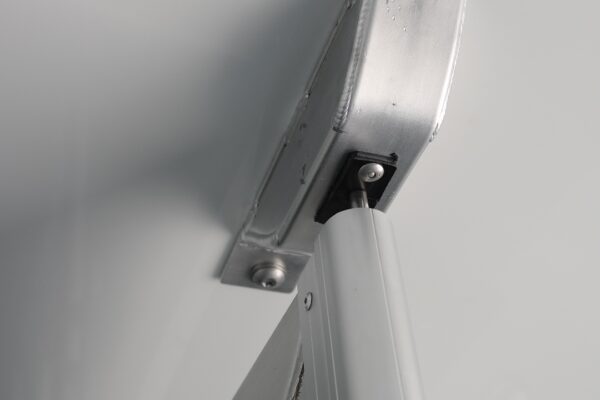

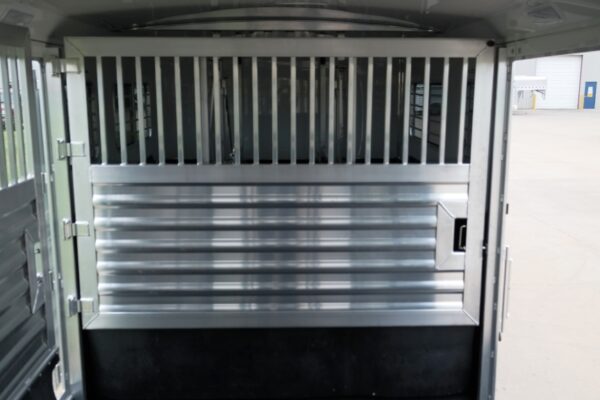

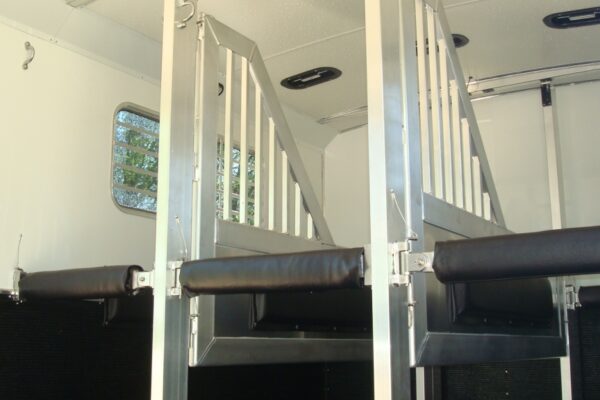

- Horse DividersWith multiple divider types, the Elite divider is built with designed extrusions that give it maximum strength
- Bulkhead Wall.090" smooth sheet welded on to our heavy duty wall posts.
- Lining and InsulationWith 4 tiers of protection, Elite Horse Trailers provide the protection from horses kicking and pawing, and help prevent sidewall damage and exterior dings.

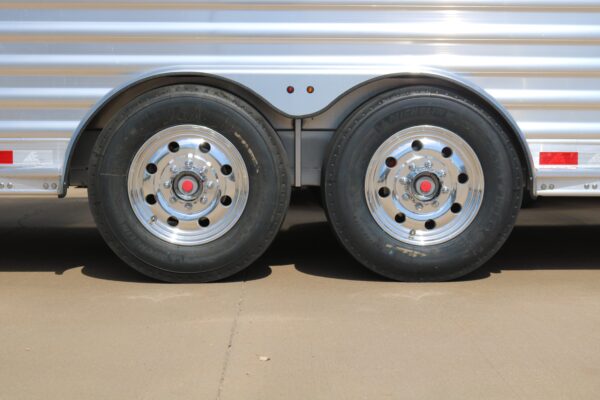

- Axles and TiresElite uses Dexter Rubber Torsion axles with electric brakes and name brand tires. Our trailers are engineered with accurate weights that provide proper axle and tire size based on the total weight of the trailer and it's contents, including living quarters.

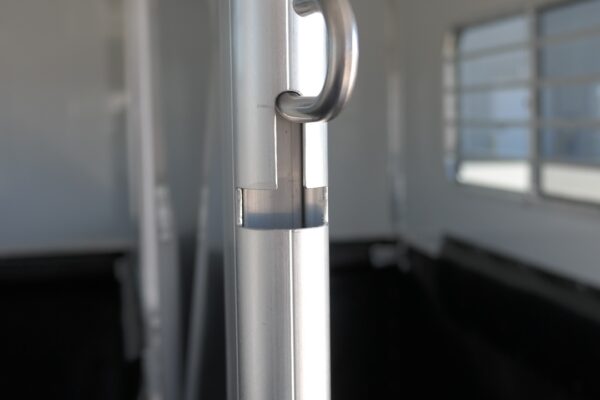

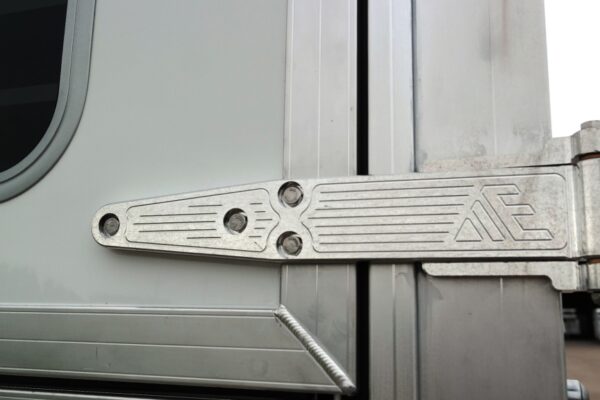

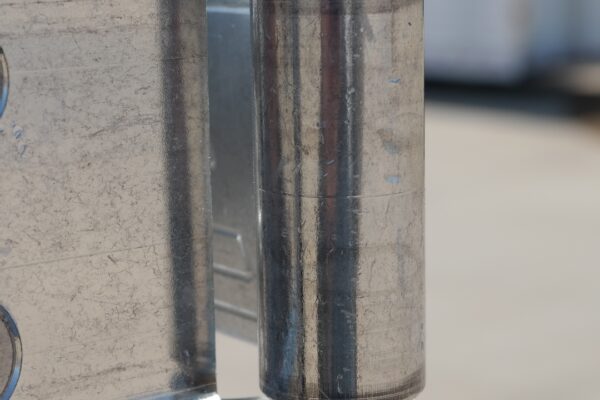

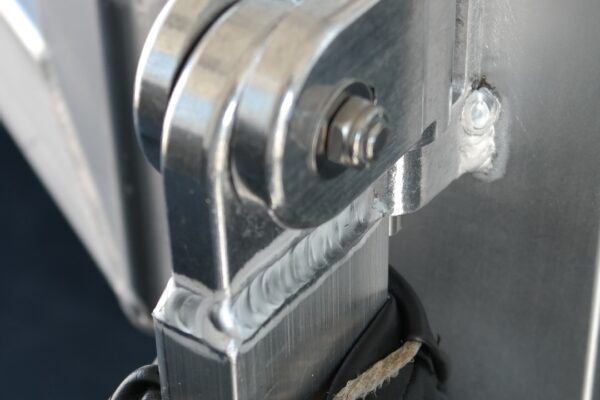

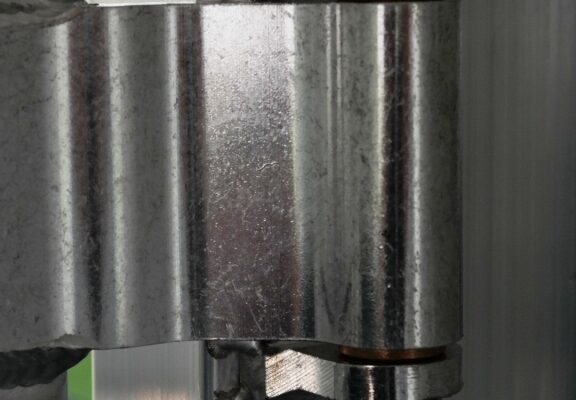

- HingesElite's proprietary, heavy duty, extruded hinge is used for doors and dividers. This hinge is fitted with a brass fitting that lubricates and allows for a tighter fit with the stainless pin. This hinge is welded to the structure to give us the strongest hinge possible.
- WindowsElite only uses HEHR windows. Available in many sizes and types, you can rest assured that they will be installed, worry free.

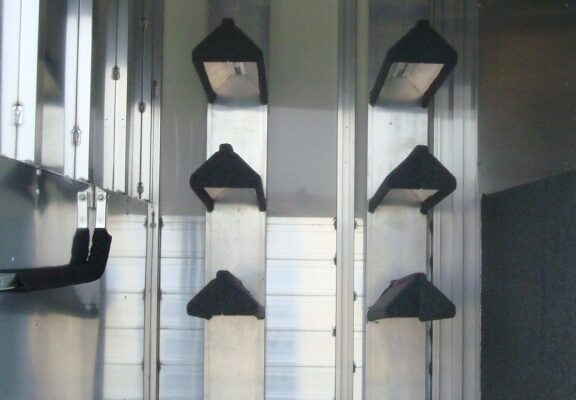

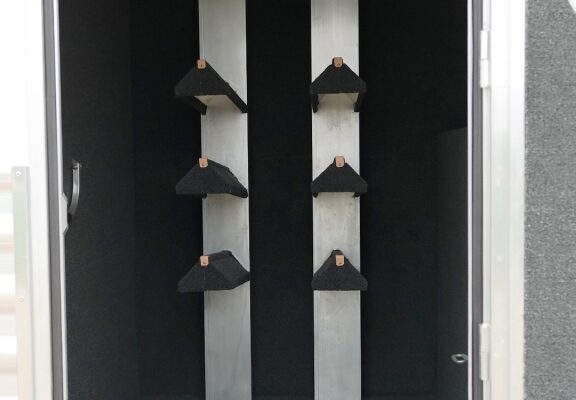

- Saddle RacksThe Elite built carpeted saddle racks are designed to hold a large variety of today's saddles.

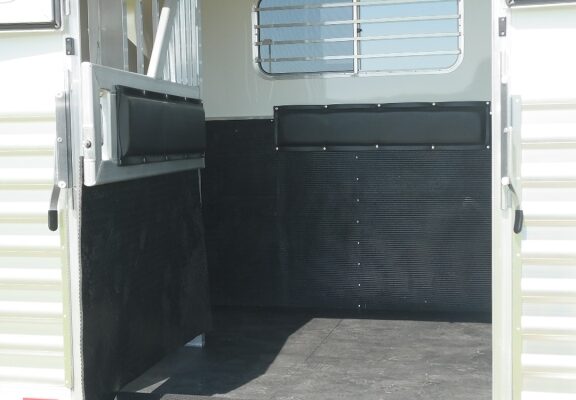

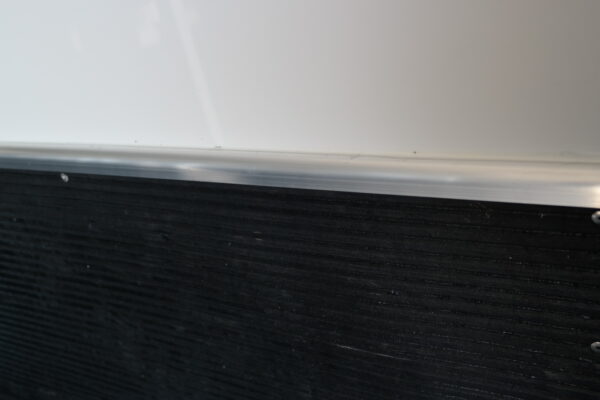

- Wall RubberThe wall rubber on our trailers is corded rubber matting that is able to absorb impacts that would damage lesser made products.
- CarpetMarine grade carpeting is used in the tack room and other applications to assure a long life.
Structure
- Top RailContinuous 5" radius rail with an overall height of 8" and a material thickness of 3/16" with an integrated drip rail.
- Drop Gusset3/16" thickness, welded one piece gussets which add structure to provide maximum nose strength.
- Drop Wall3/16" thickness with an engineered break on the top and bottom adds strength and allows for a cleaner weld area to ensure against leakage.
- FlooringElite's floor structure consists of 4" I beams with an upper 2 1'2" flange and a lower 3" flange on 12" centers. Elite utilizes a .125" thick, 5052 marine grade sheet floor on top of the structure.
- Rear FrameThe rear frame is supported by a 2 1/2" x 5" upper header at a 1/4" thickness. For added strength, the rear frame side post is integrated through the floor into the bottom rail.
- Aluminum Side Wall Construction6005 T6 aluminum alloy posts with 7" posts at the drop wall, 5" x 1 3/8" at doors and dividers, and 1 3/8" x 2 1/2" for all other side wall structure posts. The exterior, 6063 aluminum interlocking extruded slat is .125 thick. Exterior smooth sheets are a 3004 aluminum alloy with a H291 temper and thickness of up to .063".
- Roof Construction1" x 2 1/2" arched roof bows with one piece, .040" thick 3003 H16 aluminum roof sheet.
