The Elite Straight Floor Semi Trailer is latest and greatest in large scale transportation. Made with the same quality and craftsmanship as our traditional horse & livestock trailers, the Straight Floor Semi Trailer is your large scale solution to simplify your operations.

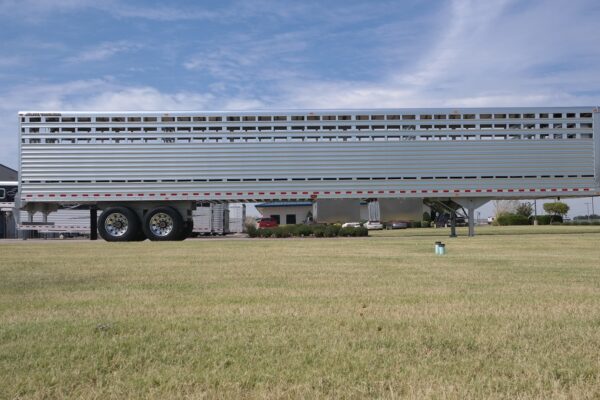

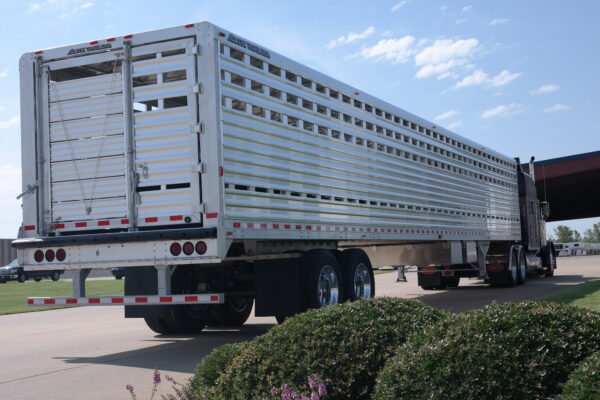

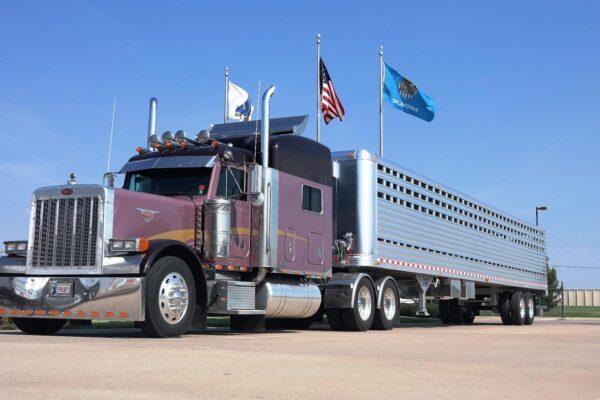

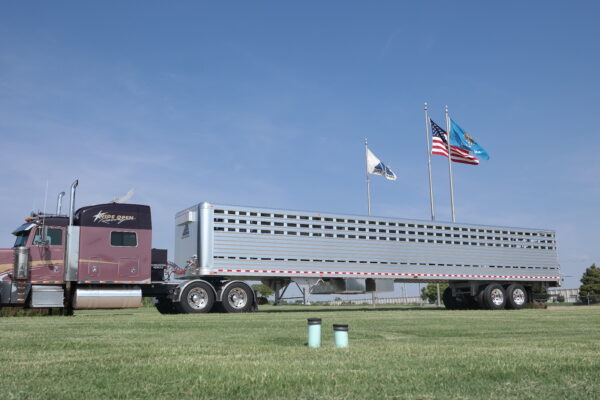

Straight Floor Aluminum Semi Trailer
Standard Trailer Features
Exterior
- 36″ KP Setting / 47″ FWH Kingpin

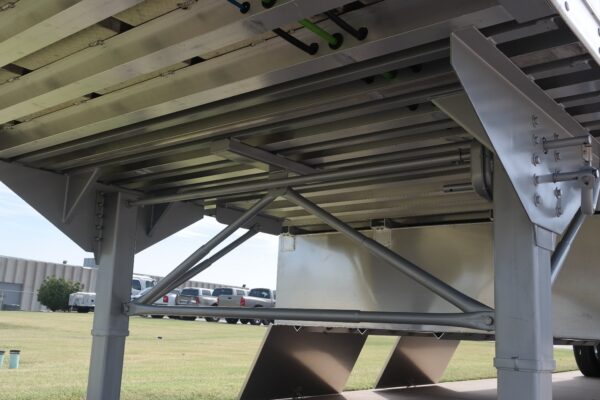

- Holland Dual Two Speed with Low Profile Sand Shoes Landing Gear

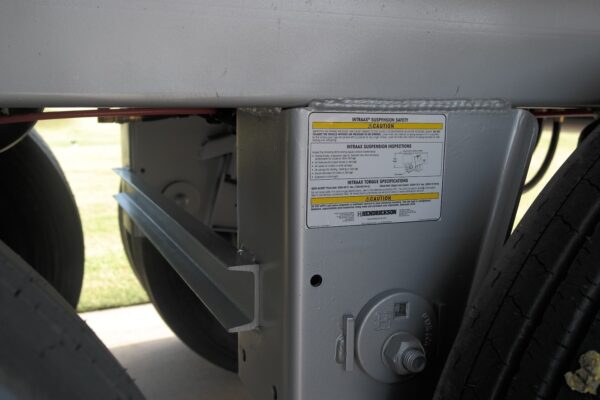

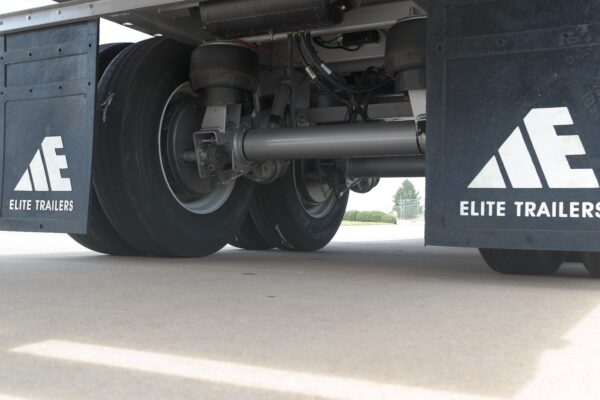

- Hendrickson Intraax 23K Air Ride with Manual Dump Valve, 2s-1M ABS Suspension
- Air Brakes (16.5×7) with 7 Way Recepticle and Glad Hands in Nose Box

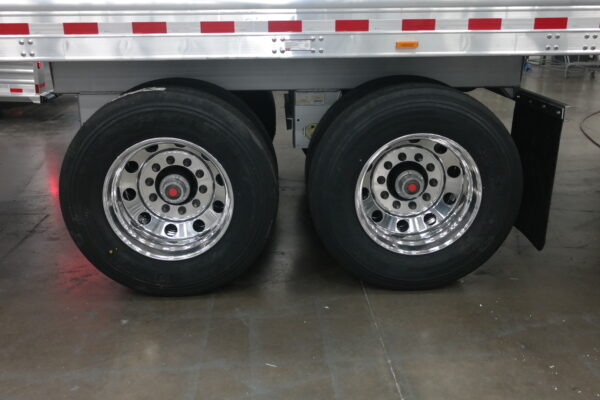

- (8) 11R24.5 ST250 Load Range “G”
- (4) Outer Aluminum Wheels
- (4) Inner Steel Wheels

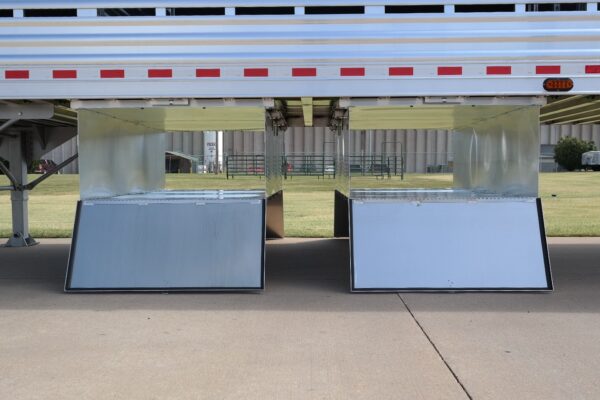

- 4″ Rubber Dock Bumper, Under Ride Bumper and Mud Flaps

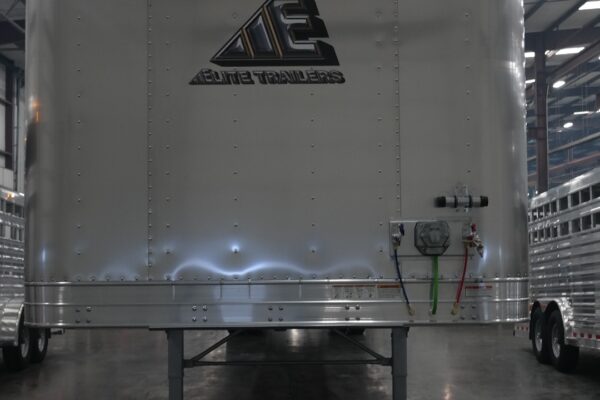

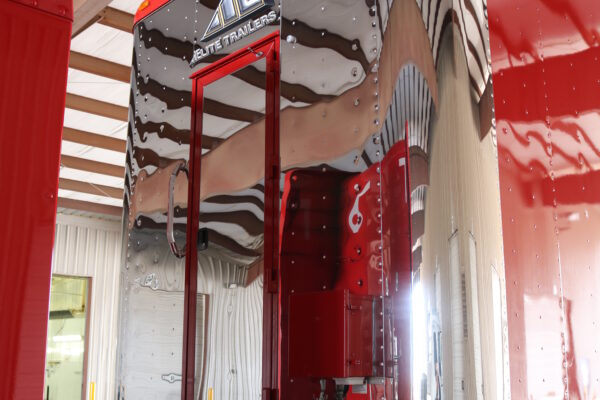

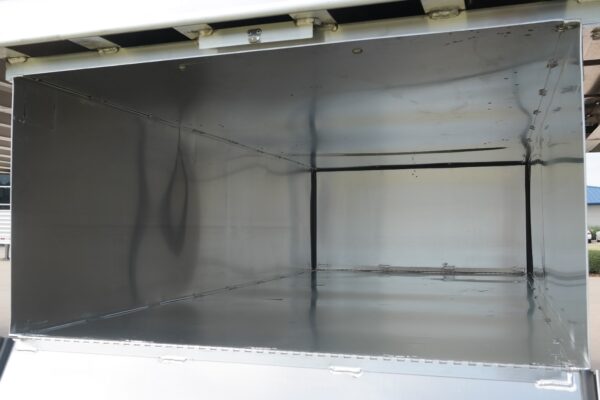

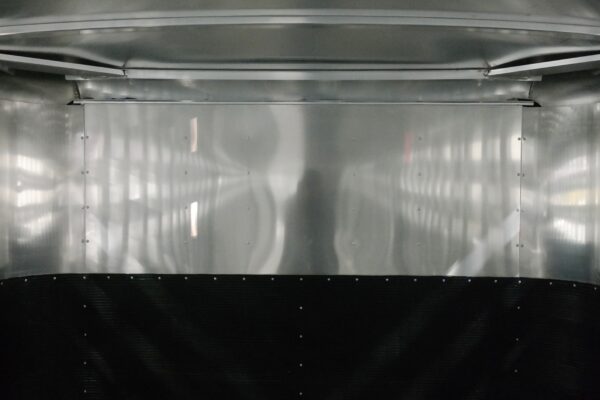

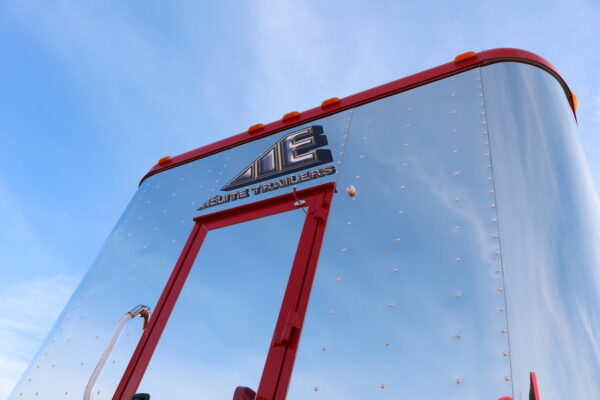

- Full Nose with Natural Finish, Double Walled and Insulated

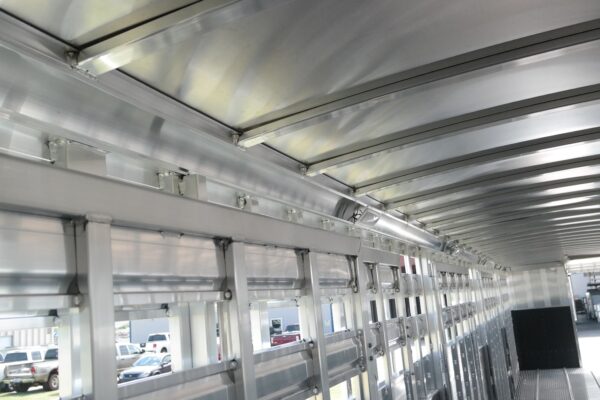

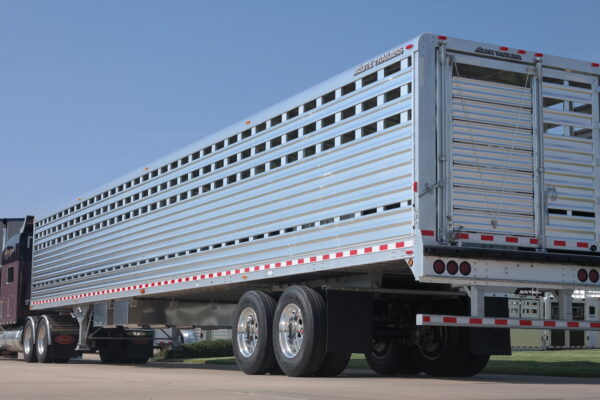

- Full Length Extruded Slats with 4 Air Spaces, 3 High and 1 Low on Sides
- Recessed Light Switches

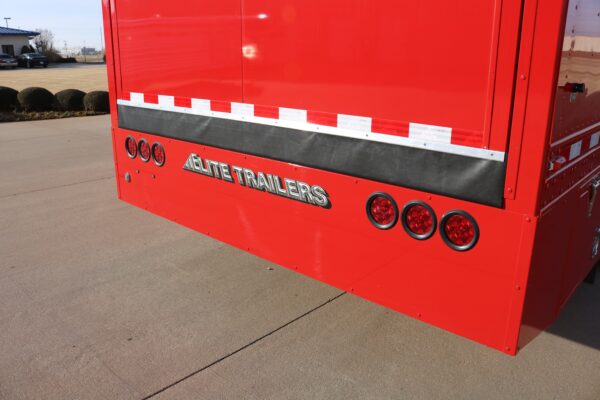

- LED Clearance, Mid Turn and Rear Stop, Turn and Tail Lights
- 36″ Wide Roll Up Gate on Streetside with Permanent Pan on Curbside
- D.O.T. Reflective Tape and Striping

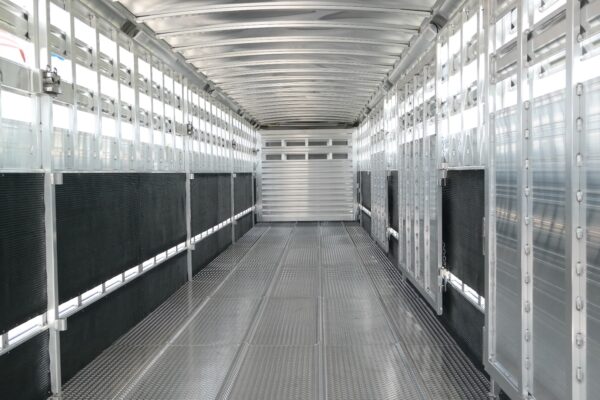

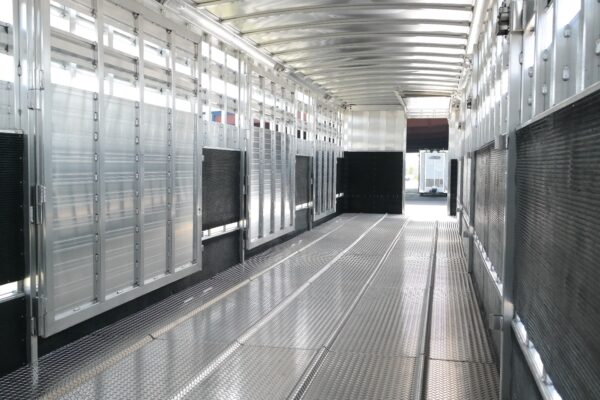

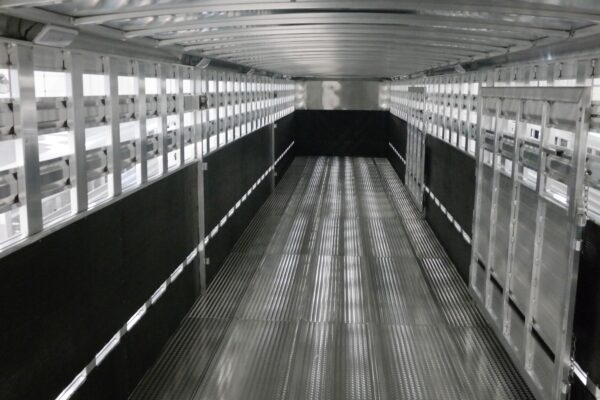

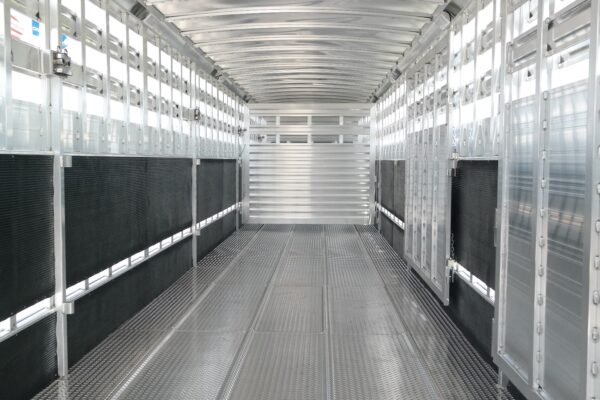

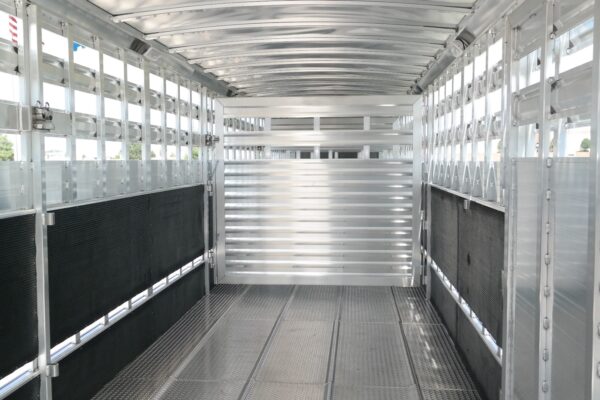

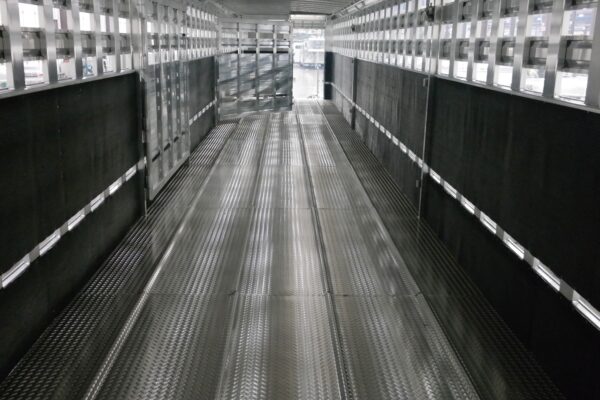

Stock Area

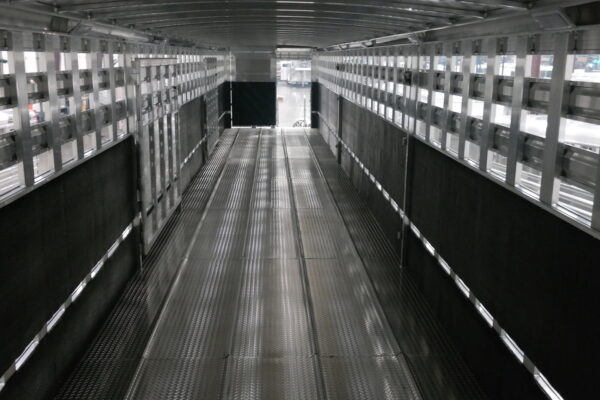

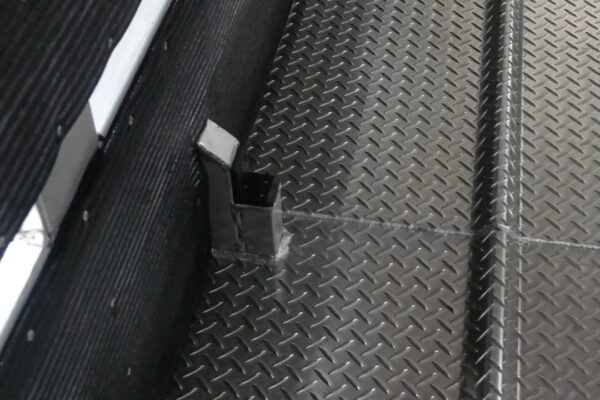

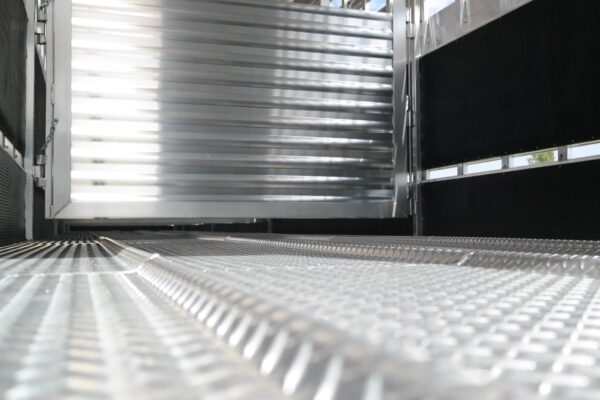

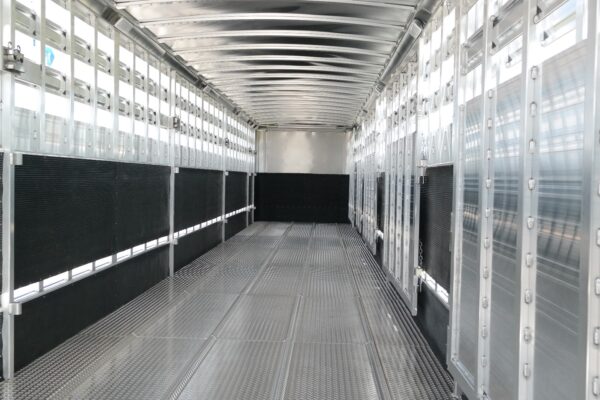

- Corrugated, Marine Grade Treadplate Floor, Full Width with Skid Plate (Rear)
- LED Interior Lights

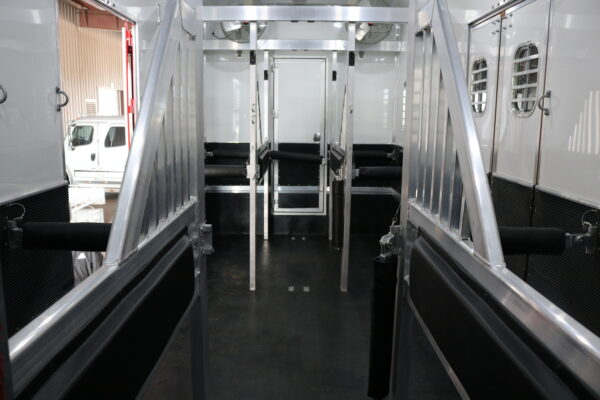

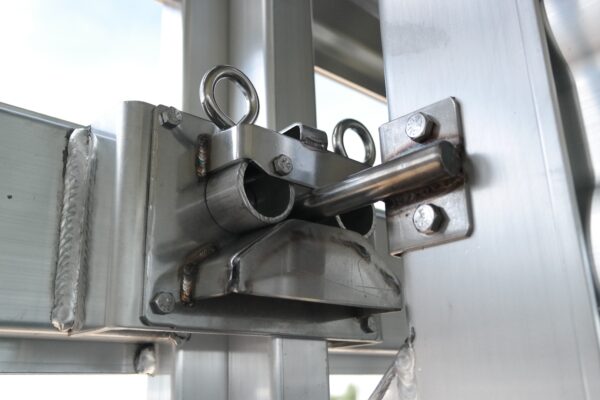

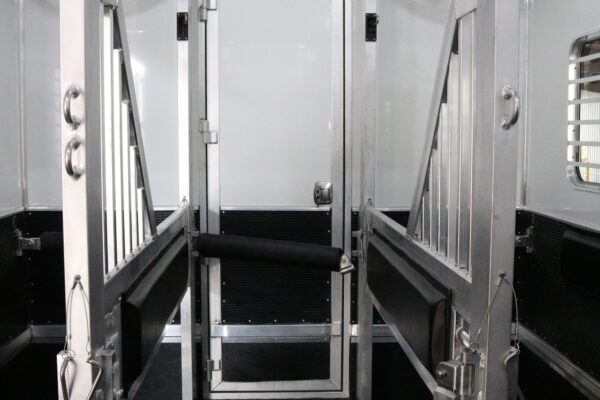

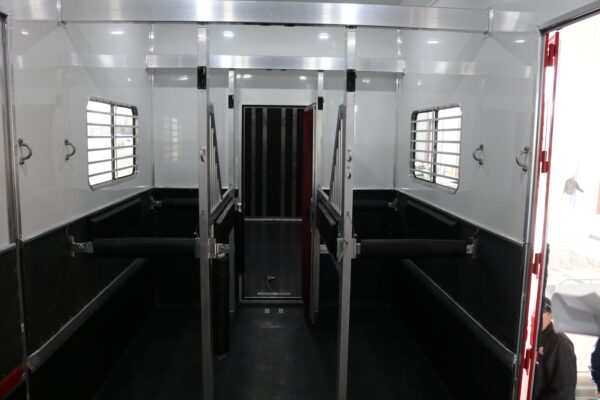

- (3) Center Gates with Double Ring Latch, (2) 3/4″ Drop Pins Mounted on Gate (Hinged on Curbside – Swings 180 Degrees)
Base Dimensions
- Straight Floor -102″ Width, 53′ Length (Total), 7′ Height (Floor to Roof)
Additional Options
- Add 6″ to Height
- Additional Center Gate
- Add 1/2 Slide or 1/2 Swing to Center Gate
- Add 3/4 Swing Gate to Center Gate
- Premium Rubber Floor Mats
- Halogen Load Light
- Additional LED Dome Lights
- Addition LED Running Lights
