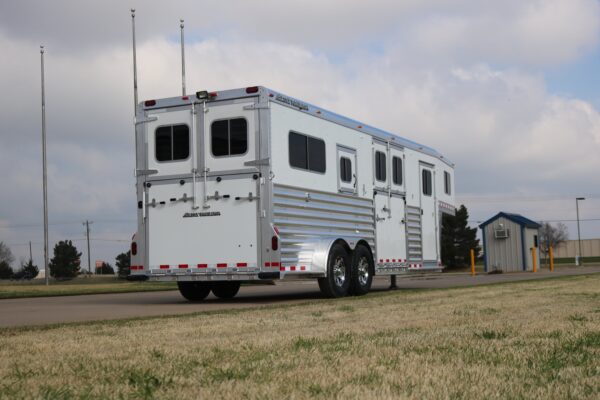

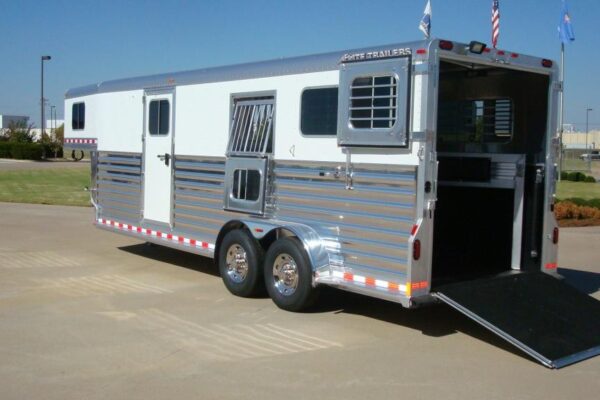

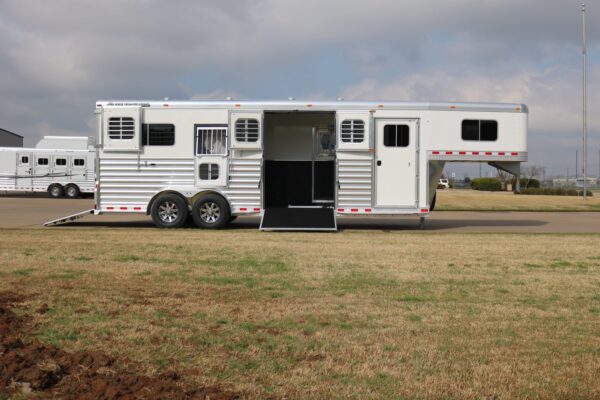

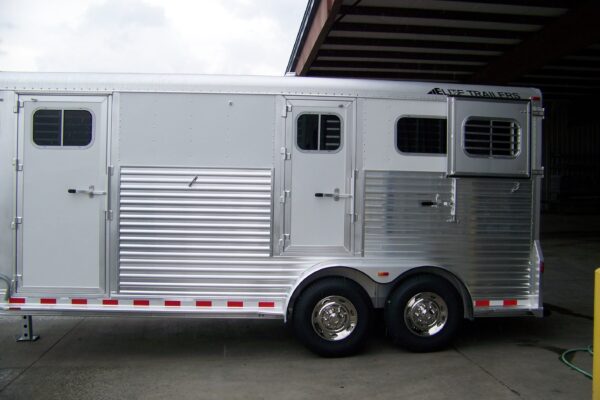

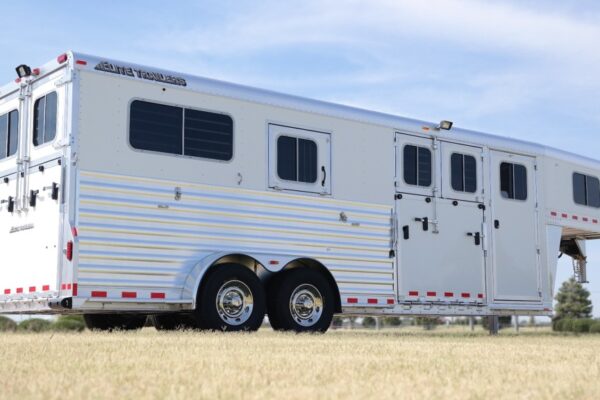

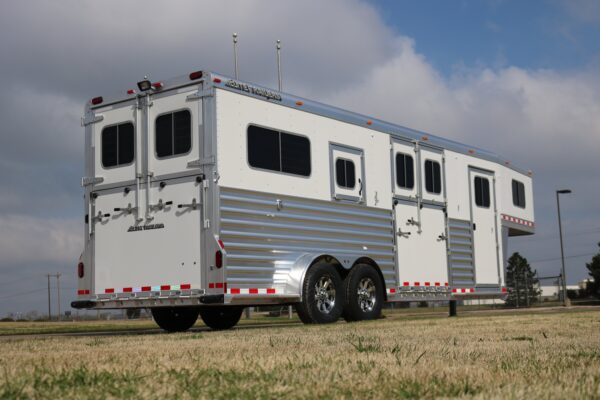

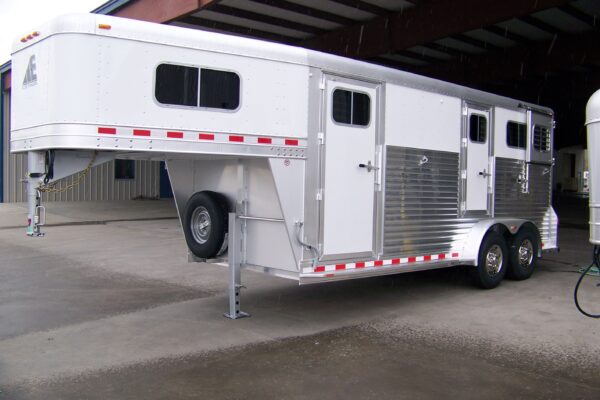

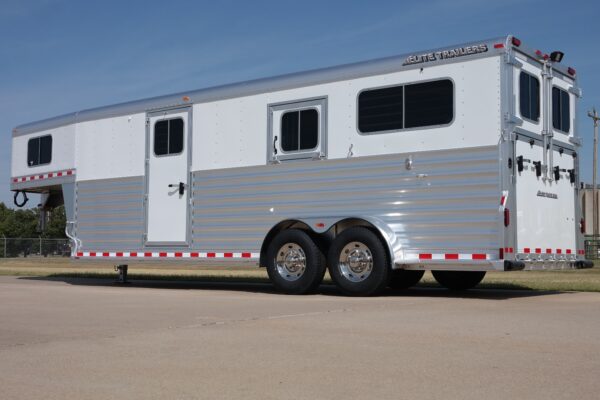

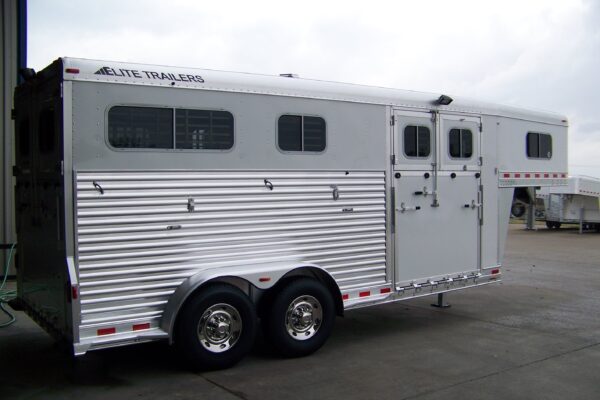

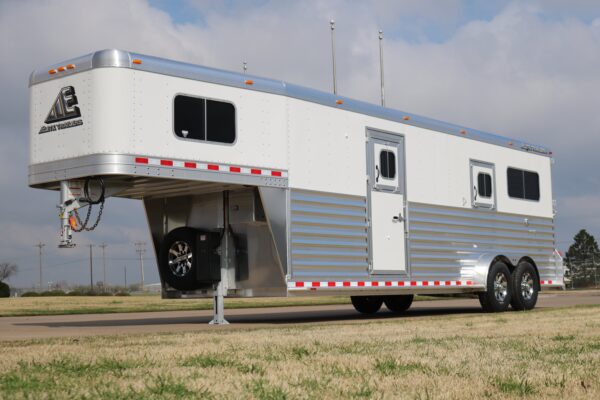

Gooseneck 2+1 Straight Load Aluminum Horse Trailer

Straight load trailers area typically a two horse trailer. The horses will load from the rear of the trailer and stand side-by-side facing the front of the trailer.

Standard Trailer Features

Exterior
  • 2-5/16" Adjustable Coupler with Safety Chains and Breakaway Kit
  • Single Speed Jack
  • 8' Long Nose with 2' Taper
  • .040 One Piece Aluminum Roof Sheet
  • Full Length Side Slats with White Smooth Sheets Above or All White Smooth Sheets
  • Rubber Torsion Axles with Electric Breaks
  • Radial Tires with Steel Wheels
  • Stainless Steel Wheel Simulators
  • Hehr 19"x34" Nose Windows

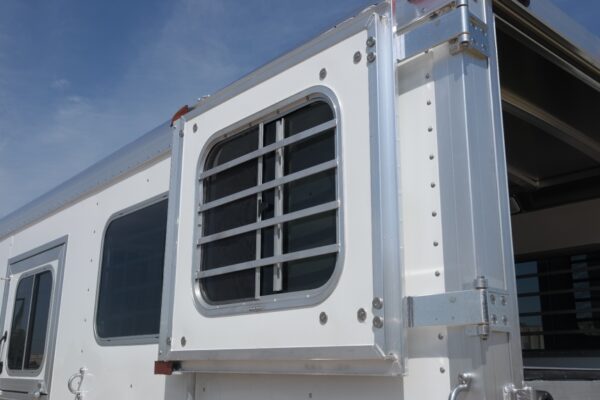

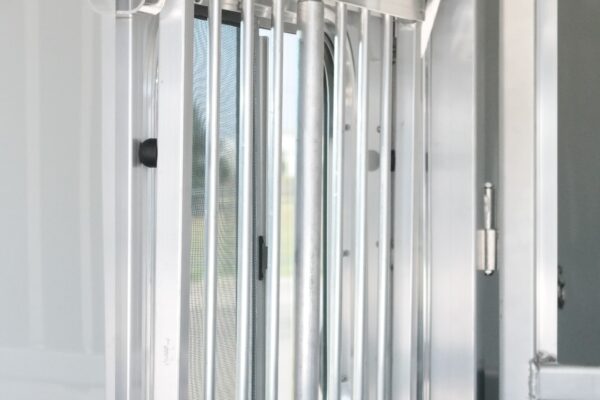

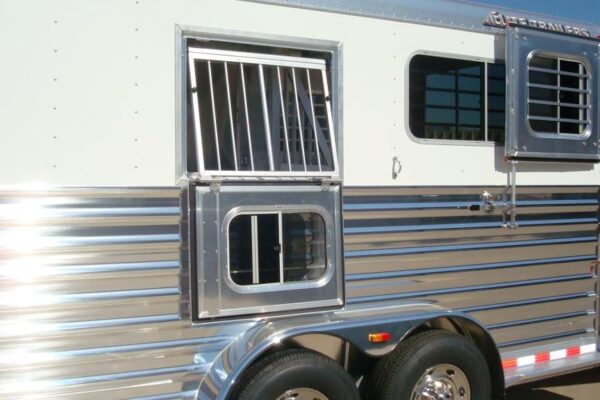

  • Drop Down Doors with Window and Welded Bars
  • Side Escape Door with Locking Seal Plates
  • Two Exterior Ties per Stall

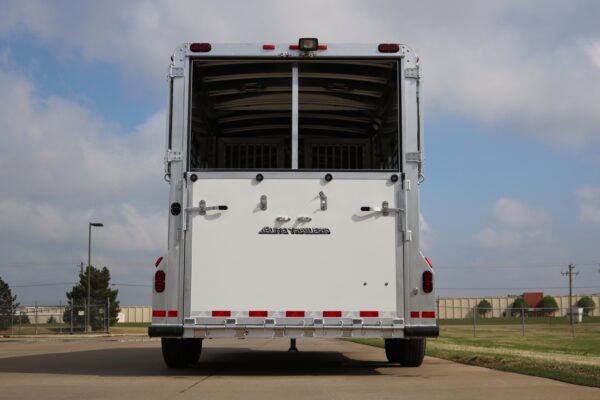

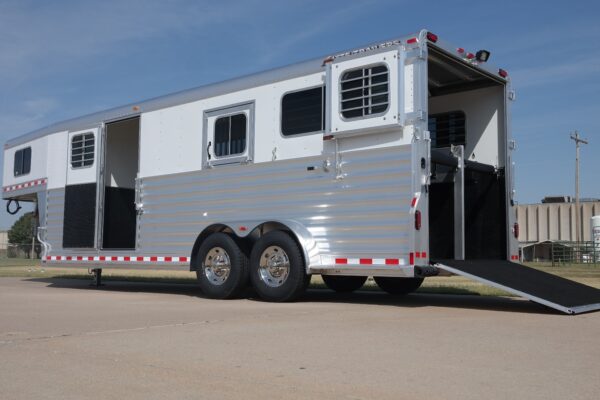

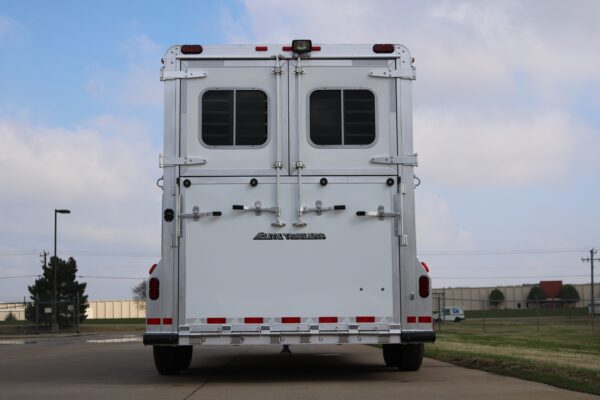

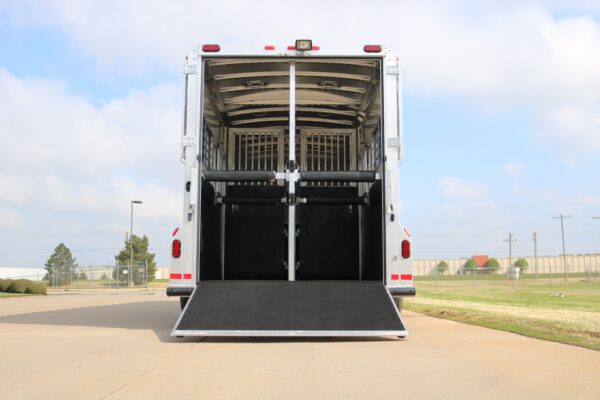

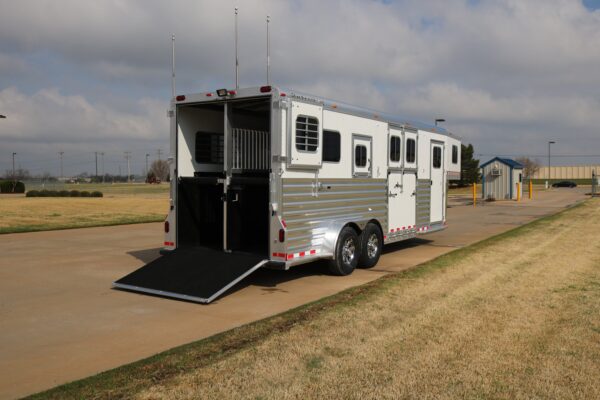

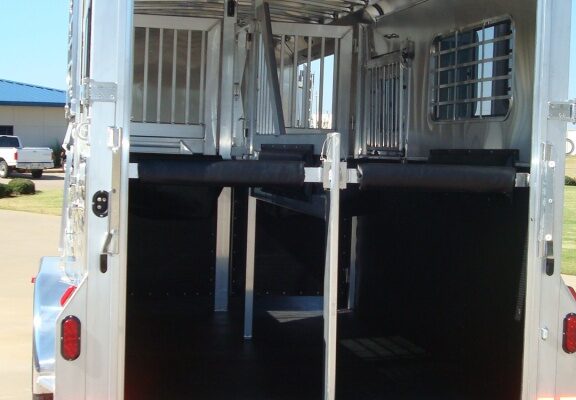

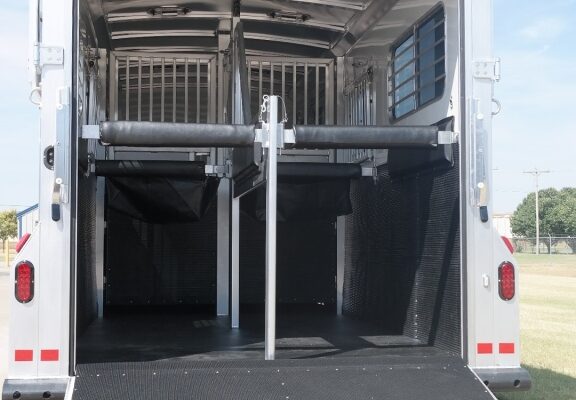

  • Full Width Rear Ramp with Two (2) Dutch Doors Above
  • 4" Rubber Docking Bumper
  • Side Ramp with Dutch Door Above
  • Halogen Load Light at Rear
  • LED Dome and Clearance Lights
  • 7 Way Plug and Wiring
  • Recessed Exterior Light Switches
  • LED High and Low Turn Signals at Rear
  • LED Dome and Clearance Lights

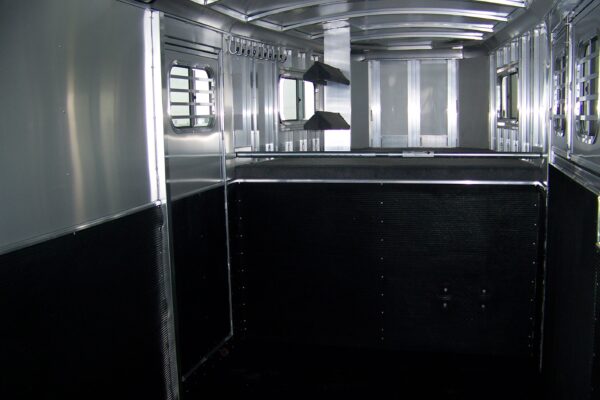

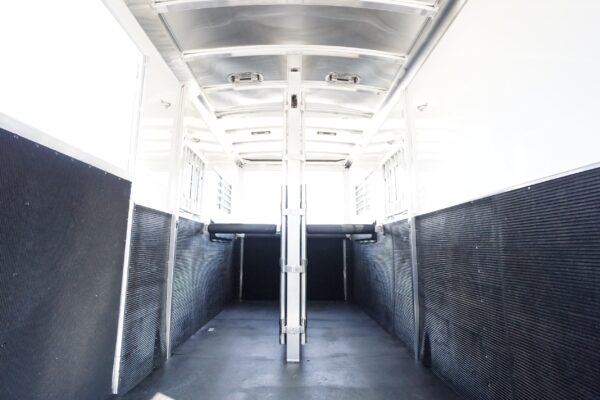

Horse Area

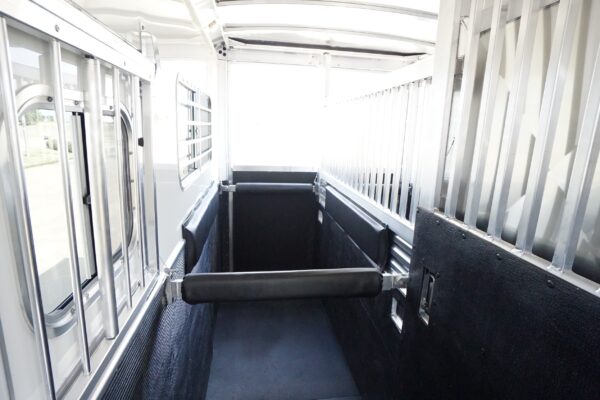

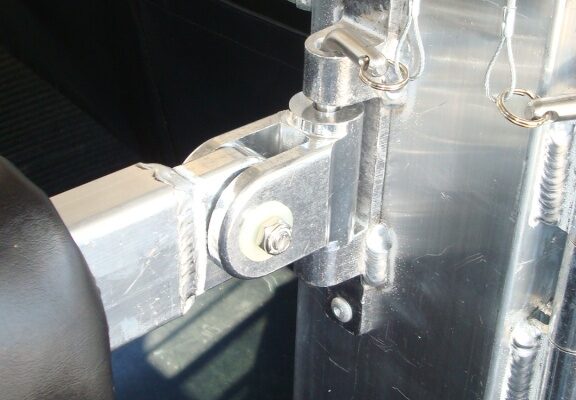

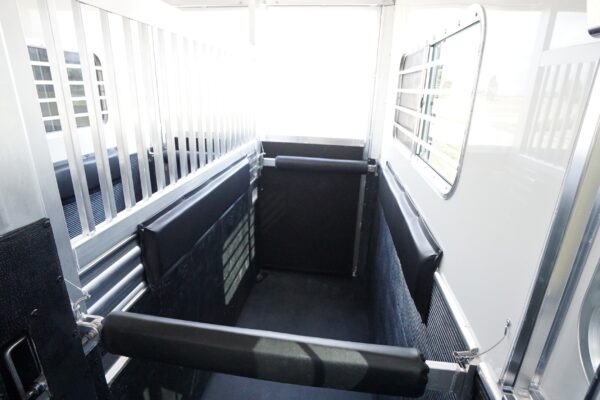

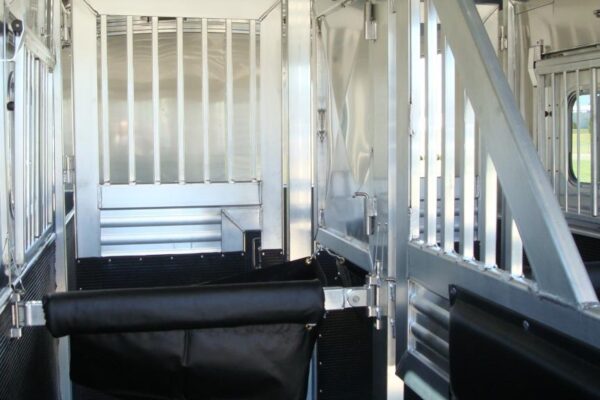

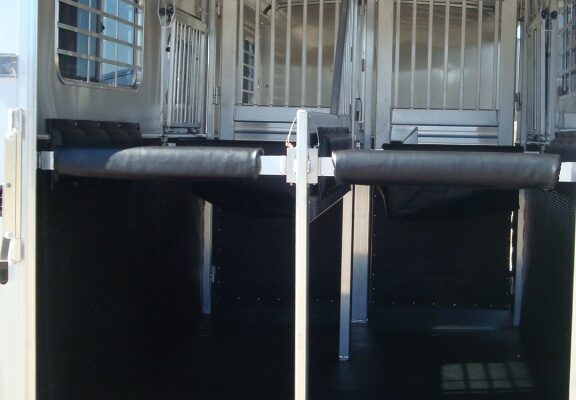

  • Breast/Butt Bars
  • Two (2) Hehr 20"x48" Windows with Welded Bars in Horse Area
  • Lined and Insulated Head and Rump Walls

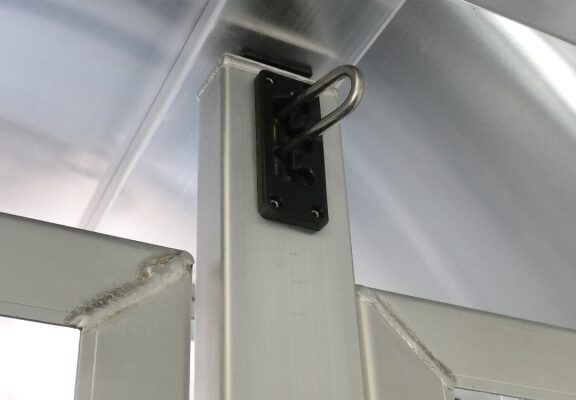

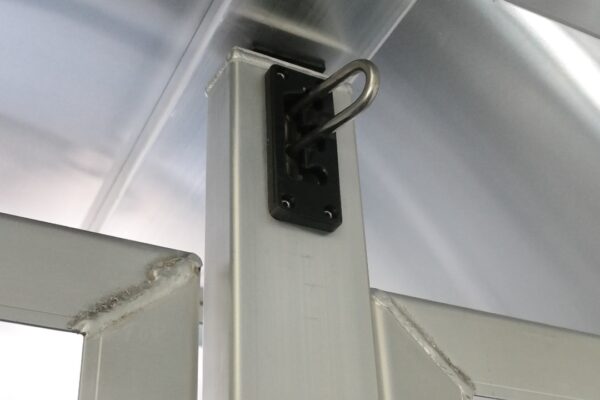

  • Two Interior Ties per Stall

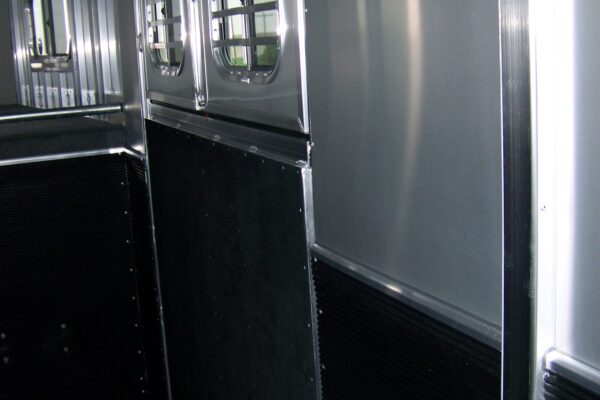

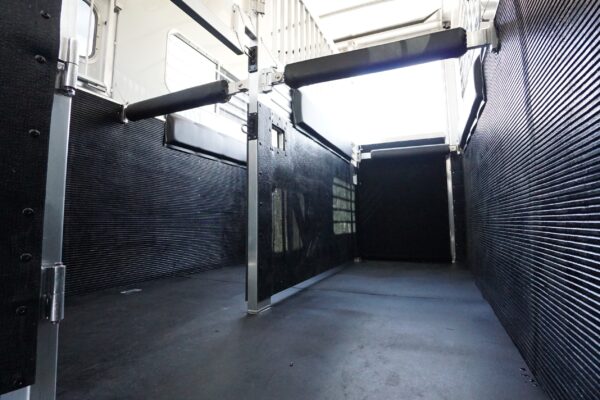

  • Rubber on Side and Bulkhead Walls in Horse Area
  • .125 Smooth Aluminum Floor (5052 Marine Grade)
  • Premium Rubber Mats on Floor in Horse Area

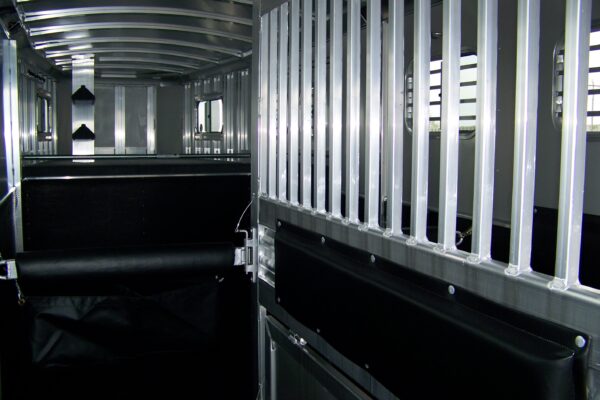

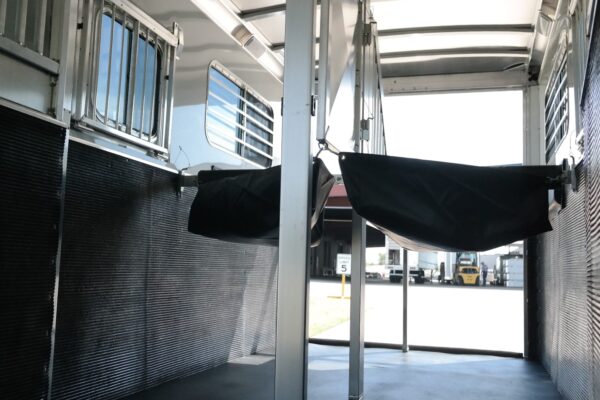

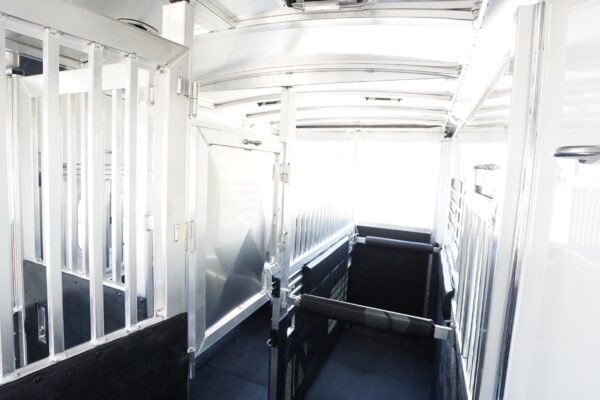

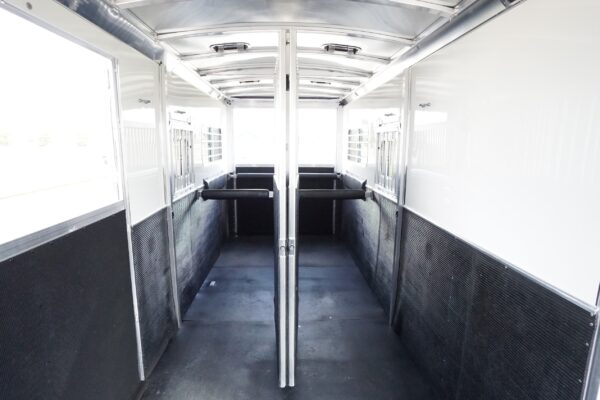

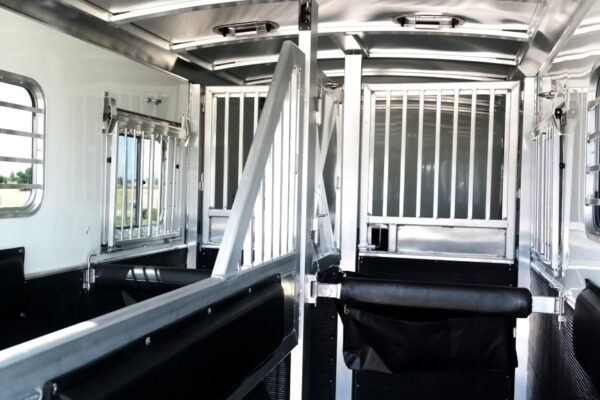

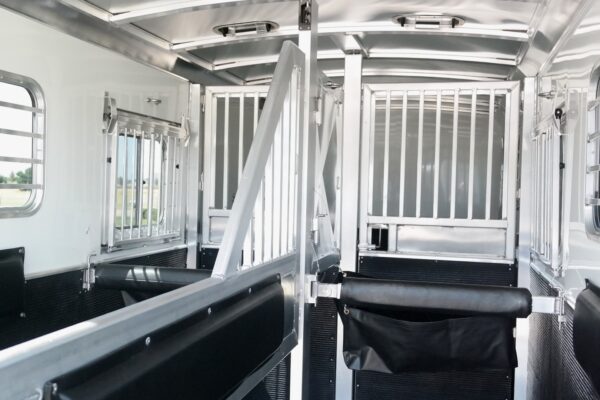

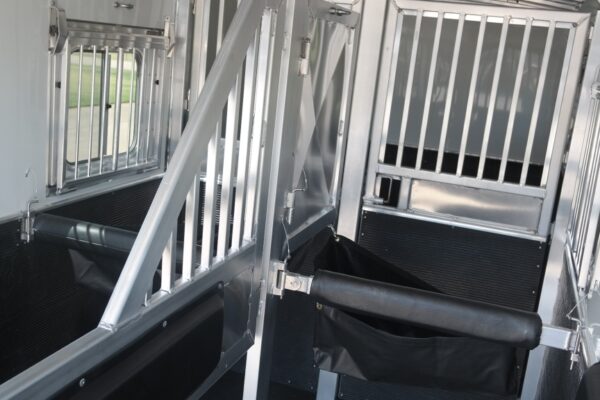

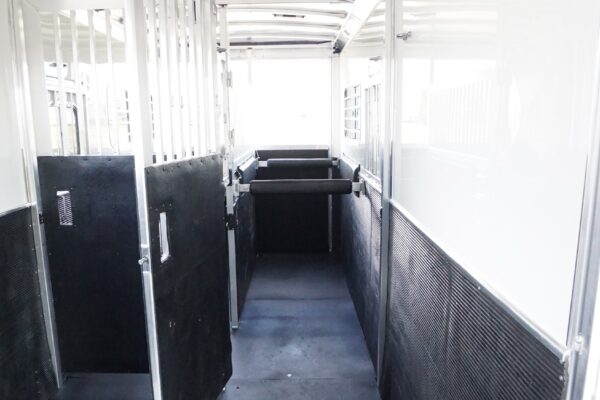

  • Straight Load Divider with Removable Head Shield and Stall Pads

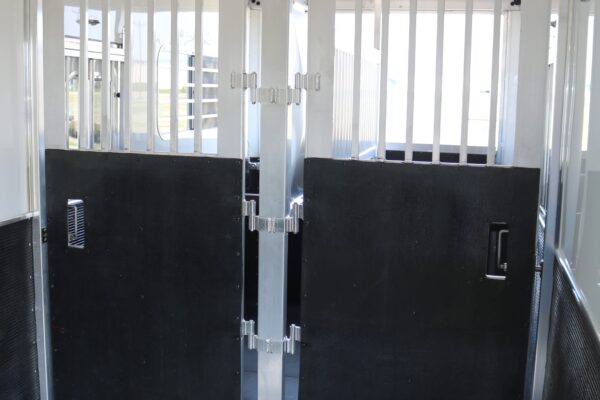

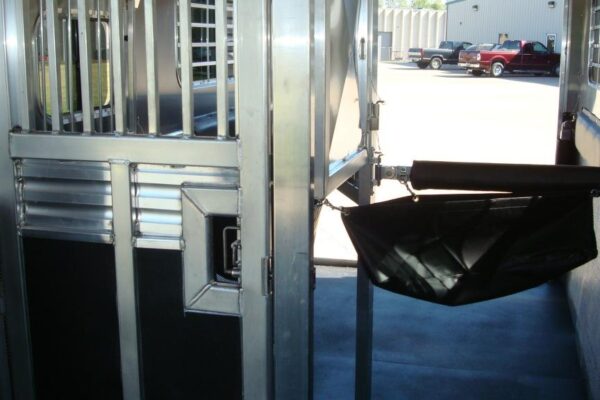

  • Double Swinging Stud Doors in Front of Head Shield

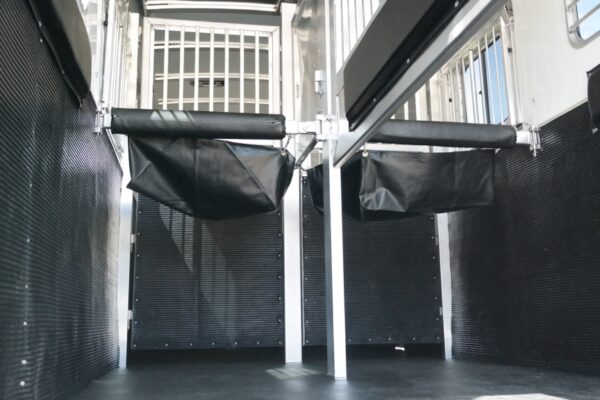

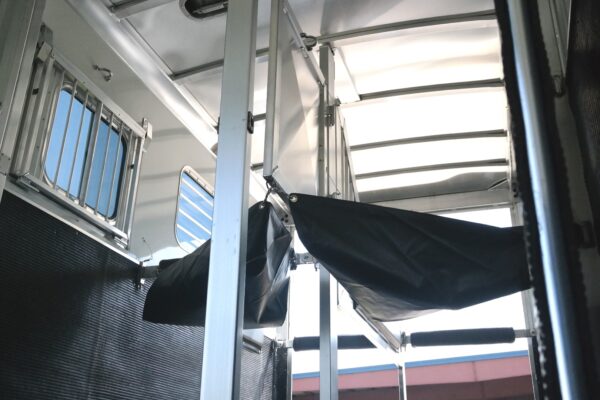

  • One Feed Bag per Horse
  • One Roof Vent per Stall
  • Bulkhead Wall
Dress
  • Dressing Room Door with Camper Latch and Hehr Windows

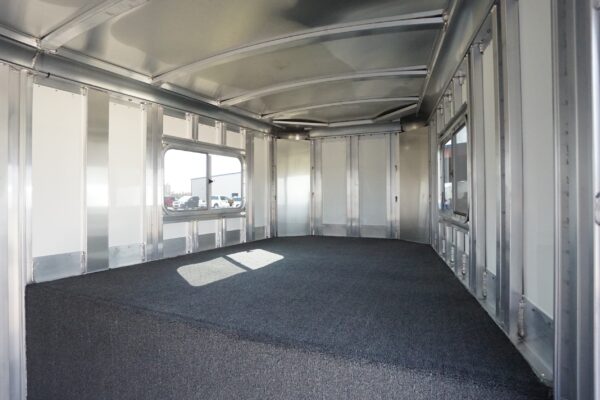

  • Marine Carpet on Dress Floor, Drop and Bed
  • One Saddle Rack per Horse
  • Blanket Bar
  • 10 Bridle Hooks
  • Brush Trays
Base Dimensions
  •  WidthLengthHeight
  • 2+1 Straight Load7'21'7'6"

Popular Options

Air Conditioner
  • 13,500 BTU A/C Unit with Heat Strip
  • 13, 500 BTU Low Pro A/C Unit with Heat Strip and Thermostat
  • Pre Wire for Future A/C Unit
Awnings
  • Domestic 2 Step Awning
Axles
  • Ridewell Semi Style Air Ride
  • STI Cargo Max Air RIde
  • EZ Lube Axles
  • Oil Bath Axles
  • Tapered Inner Fenders
Bars
  • Drop Down Window Bars for Feed Doors
  • Full Height Blanket Tree
  • Carpeted Splint Boot Bars
  • Swinging and Removable Blanket Tree
  • Swing Out Blanket Bars
Battery and Boxes
  • Single Battery Box
  • Single Battery Box with Battery
  • Dual Battery Box
  • Dual Battery Box with (2) Batteries
  • 3' Carpeted Boot Box with Lid
  • 4' Carpeted Boot Box with Lid
  • Full Width, Carpeted Boot Box with Dual Lids
Brakes
  • Electric / Hydraulic Brakes
  • Electric / Hydraulic "Disc" Brakes
Carpet
  • Carpeted Walls in Dress
  • Carpeted Bulkhead Wall in Dress
  • Line/Insulate/Carpet Walls in Dress
Clothes Rod
  • Clothes Rod (5 Feet)
  • Clothes Rod (5+ Feet)
Coupler
  • 2-5/16 Fulton Cable Release
  • King Pin Coupler on Inner Pipe
Dividers
  • Flow Thru Divider and Head Shield
  • Full to Bottom Divider
  • Full to Top Divider
  • Removable Lower Divider Panel
  • Hanging Rubber on Divider
  • Full Width Swinging Stud Gate
  • Double Swinging Stud Gates
Door (Dress/Tack Room)
  • Additional Width to Dressing Room (37" to 50")
  • HEHR Camper Door with Window and Screen
  • Additional Dress Doors
Doors (Drop Down, Access and Walk Thru)
  • Drop Down Door with Window on Curbside in lieu of Bus Windows
  • Access Door
  • Access Door in Gooseneck
  • Walk Thru Door in Bulkhead
Door (Escape)
  • 3/4 Escape Door
  • Delete Escape Door
Door (Rear)
  • Double Rear Doors with Double Pipe Hardware
  • Double Rear Doors with Single Pipe Hardware
Electrical
  • Breaker Box, (1)110v Outlet and Shore Plug
  • Additional 110v Outlet
  • Shore Power Cord, 30amp or 50amp
  • Voyager IR Color Camera Systems
Exterior Skin
  • Pre-Painted White Exterior Skin (Standard)
  • Mill Finish (Natural) Exterior Skin
  • Pre-Painted Black Exterior Skin
  • Pre-Painted Gray Exterior Skin
  • Pre-Painted Red Exterior Skin
  • Custom Painted Exterior Skin
  • Stainless Steel Nose Sheets
  • Stainless Steel Nose and Gooseneck Side Sheets
  • Stainless Steel Side Sheets
  • Polished Slat
  • Polished Fenders
  • Polished Top Rail
  • Polished Bottom Rail
  • Polished Door Frames and Flush Mount
  • Polished Rear Corner Posts and Rear Header
  • Polished Drop Gussets
Footage
  • Add Footage to Dressing Room
  • Delete Footage from Dressing Room
  • Add Footage to Horse Area
  • Delete Footage from Horse Area
Generator Compartment
  • 48" Deep Full Width Generator Platform on Roof with No Box
  • 48" Deep Full Width Platform on Roof with Vented Generator Box
  • Generator Platform with Vented Box
  • Vented Generator Box Located in Hay Rack
Hayrack
  • Hayrack with Aerodyne Nose and Tie Rails
  • Enclosed Haypod with Aerodyne Nose
  • Integrated Haypod
  • Enclosed Haypod with Extended Sides and Aerodyne Nose
Height
  • 7' (Standard) with Options to Increase Height in 6" Increments
Hooks
  • Additional Bridle Hooks
Jacks
  • Spring Loaded Jack
  • Dual Single Speed Jack
  • Single 2-Speed Jack
  • Dual 2-Speed Jacks
  • Equalizer Hydraulic Single Leg Jack
  • Equalizer Dual Hydraulic Jack
Latch
  • Add Camper Door Latch to Any Door
  • Chrome Handles and Latches
Lights
  • Clear Lens LED Clearance Lights
  • LED Running Lights on Bottom Rail
  • Add Standard LED Dome Lights (390 Lumens)
  • Extra LED Turn Signals Mounted in Slats
  • LED Load Light
  • LED Load Light Flush Mount
  • Porch Light
  • LED Dome Light Place Under Nose
  • Additional LED Clearance Lights
  • Backup Lights
  • 3/4" LED Button Lights (Replace Standard Lights)
  • Extra LED Turn Signals Mounted in Fender
  • Halogen Load Lights
  • Halogen High Intensity Load Light
  • LED 6"x18" Dome Lights (880 Lumens)
Lock
  • Keyless Combination Deadbolt Lock
Mats
  • Rubber Floor Mats
  • WERM Flooring
  • Equifoam Under Floor Mats
Nose
  • Full Nose
  • Enclose Under Nose with 3 Doors
  • Enclose Under Nose with Roll Up Door
  • Enclose Under Nose with Full Width Lift Door with (2) Access Doors in Lift Up Door
Paint
  • Paint Top Rail
  • Paint Top Rail and Bottom GN Rail
  • Paint Drop Gussets
  • Paint Smooth Sheets
  • Paint Side Slat
  • Paint Bottom Rail
  • Paint Coupler
  • Paint Landing Gear and Handle
  • Paint Rear Corner Posts and Rear Header
  • Paint Door or Ramp
Ramps
  • 48" Tall Spring Loaded Rear Ramp
  • 52" Tall Spring Loaded Rear Ramp
  • Spring Loaded Rear Ramp behind Single or Double Doors
  • Spring Loaded Side Ramp with Single or Double Dutch Doors Above
Roof
  • Insulate and Line Roof and Top Rail (Natural Aluminum)
  • Insulate and Line Roof and Top Rail (White)
Rubber
  • Rubber Both Sides of Removable Panel or Full to Floor Divider
  • Add Rubber on Top 1/2 of Bulkhead Wall (Horse Area Side)
Saddle Racks
  • Additional Racks
  • Extra Saddle Rack Locations
  • Removable Saddle Rack Post
  • Removable Saddle Rack from Post
  • Swinging Saddle Rack
  • Make Saddle Rack up to 12" Longer
  • Delete Saddle Racks
Shelf
  • Corner "V" Shelves
  • Hat Shelf Only
  • Hat Shelf with Bridle Hooks Underneath
  • Hat Shelf with Clothes Underneath
  • Fold Up Shelf
Slide Out
  • HWH Hydraulic Slide Out
Steps
  • Fold Up Camper Step (Dress, Escape and Rear Tack Doors)
  • Step Cleats
Trays
  • Additional Brush Trays
Ties
  • Welded Trailer Ties (Inside)
  • Bolted Ties (Exterior)
  • Bolted Stainless Steel Ties (Exterior)
Vents
  • Lunar Dome Roof Vent
  • Two Way Roof Vent
  • 12v Fans
Water Tanks
  • Aluminum Water Tank, 25-50 Gallons
  • 25 Gallon V-Style Plastic Tank and Stand
  • 50 Gallon Plastic Tank with Pump
  • 100 Gallon Plastic Tank with Pump
  • Water Pump for Tank
Wall Lining
  • Line and Insulate Dress Wall (White)
  • Line and Insulate Dress Wall (Natural Aluminum)
Wheels
  • Alcoa Aluminum Wheels
Width
  • 7' (Standard), 7' 6", 8', 100" and 102"
Windows (Multiple Sizes)
  • Sliding
  • Jalousie
  • Kickout

Trailer Details

Components
  • DoorsAll Elite built doors are engineered with heavy duty, proprietary extrusions and constructed to allow for maximum seal.

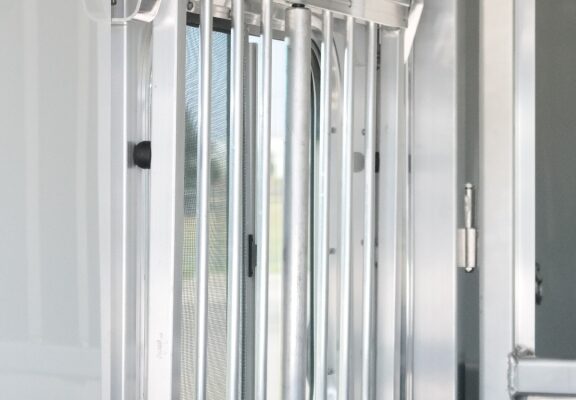

  • Drop BarsElite built drop down bar mechanism is machined to allow ease of use. Independent from the drop down door allows for simple use.
  • LightingElite utilizes LED interior and exterior clearance lighting in all wiring harnesses. All wiring connections are plugs or are soldered, covered with heat shrink material.

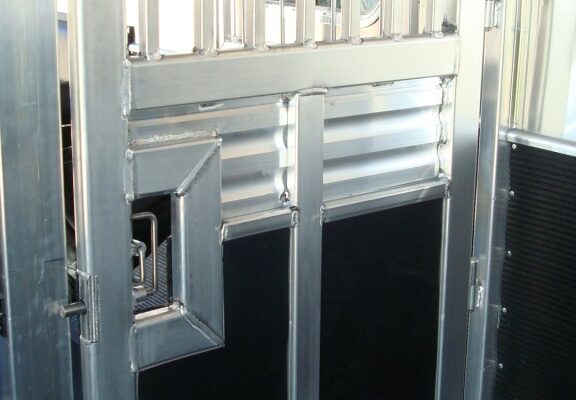

  • Horse DividersWith multiple divider types, the Elite divider is built with designed extrusions that give it maximum strength
  • Bulkhead Wall.090" smooth sheet welded on to our heavy duty wall posts.
  • Lining and InsulationWith 4 tiers of protection, Elite Horse Trailers provide the protection from horses kicking and pawing, and help prevent sidewall damage and exterior dings.
  • Axles and TiresElite uses Dexter Rubber Torsion axles with electric brakes and name brand tires. Our trailers are engineered with accurate weights that provide proper axle and tire size based on the total weight of the trailer and it's contents, including living quarters.

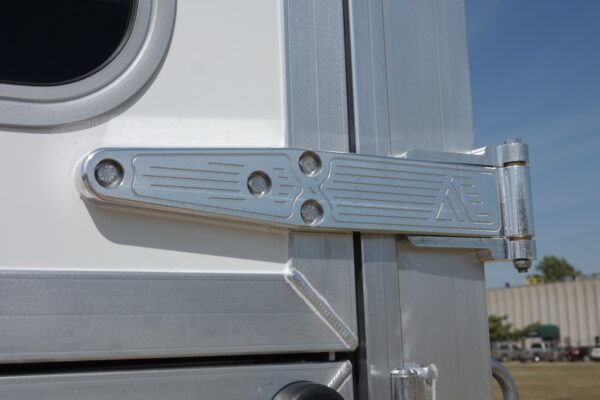

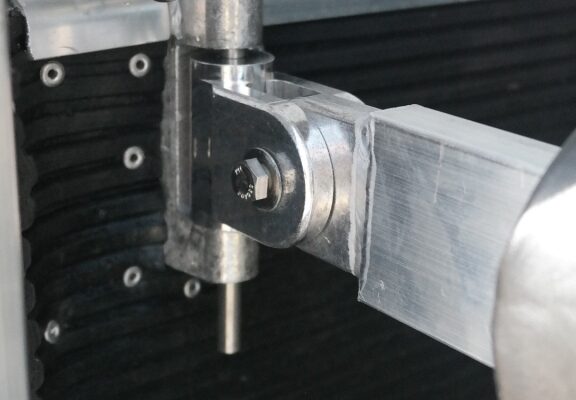

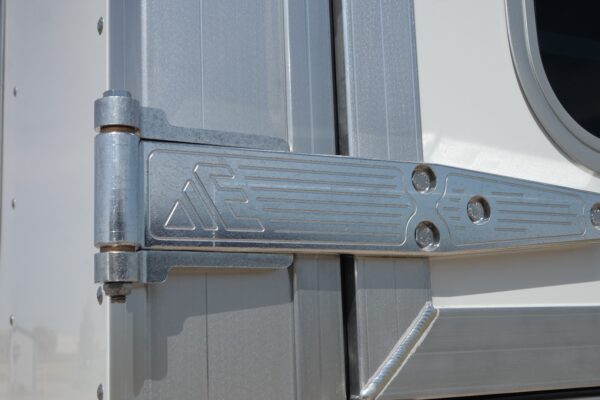

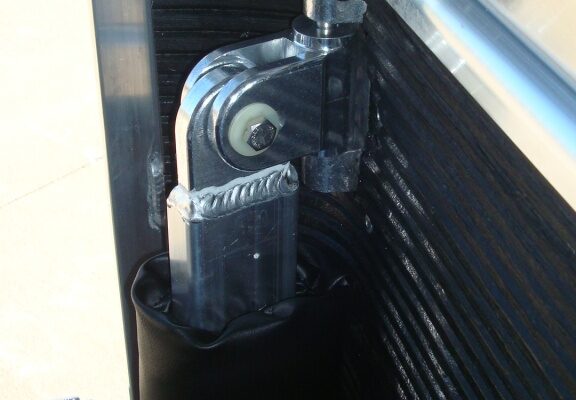

  • HingesElite's proprietary, heavy duty, extruded hinge is used for doors and dividers. This hinge is fitted with a brass fitting that lubricates and allows for a tighter fit with the stainless pin. This hinge is welded to the structure to give us the strongest hinge possible.
  • WindowsElite only uses HEHR windows. Available in many sizes and types, you can rest assured that they will be installed, worry free.
  • Saddle RacksThe Elite built carpeted saddle racks are designed to hold a large variety of today's saddles.

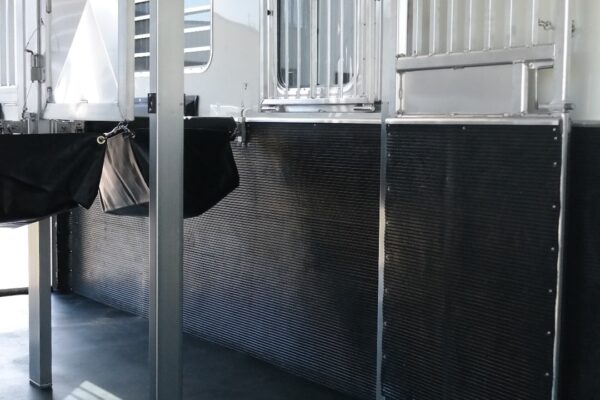

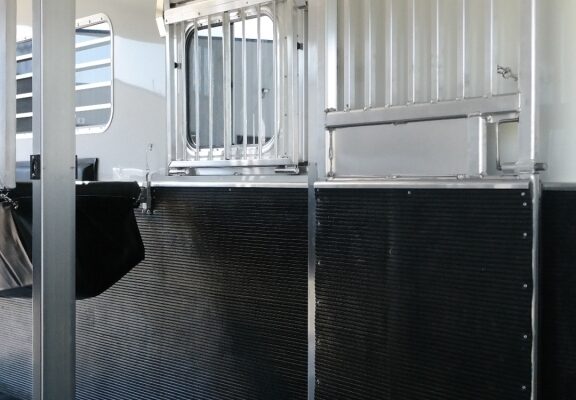

  • Wall RubberThe wall rubber on our trailers is corded rubber matting that is able to absorb impacts that would damage lesser made products.
  • CarpetMarine grade carpeting is used in the tack room and other applications to assure a long life.
Structure
  • Top RailContinuous 5" radius rail with an overall height of 8" and a material thickness of 3/16" with an integrated drip rail.
  • Drop Gusset3/16" thickness, welded one piece gussets which add structure to provide maximum nose strength.
  • Drop Wall3/16" thickness with an engineered break on the top and bottom adds strength and allows for a cleaner weld area to ensure against leakage.
  • FlooringElite's floor structure consists of 4" I beams with an upper 2 1'2" flange and a lower 3" flange on 12" centers. Elite utilizes a .125" thick, 5052 marine grade sheet floor on top of the structure.
  • Rear FrameThe rear frame is supported by a 2 1/2" x 5" upper header at a 1/4" thickness. For added strength, the rear frame side post is integrated through the floor into the bottom rail.
  • Aluminum Side Wall Construction6005 T6 aluminum alloy posts with 7" posts at the drop wall, 5" x 1 3/8" at doors and dividers, and 1 3/8" x 2 1/2" for all other side wall structure posts. The exterior, 6063 aluminum interlocking extruded slat is .125 thick. Exterior smooth sheets are a 3004 aluminum alloy with a H291 temper and thickness of up to .063".

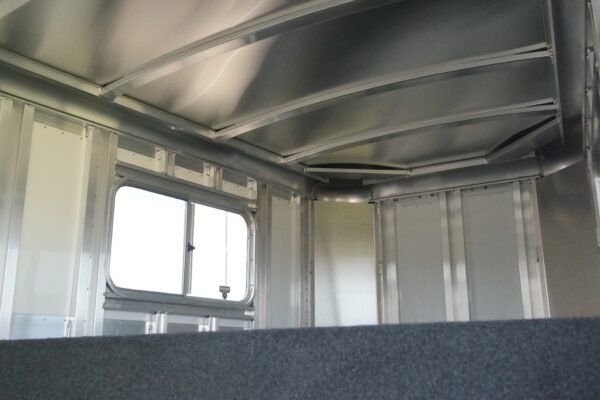

  • Roof Construction1" x 2 1/2" arched roof bows with one piece, .040" thick 3003 H16 aluminum roof sheet.
